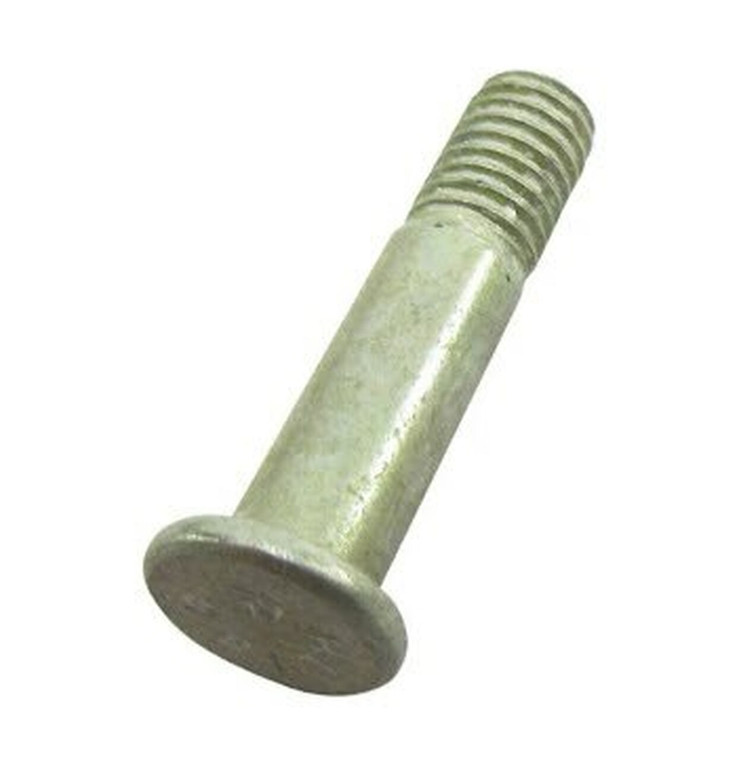

Part HL19PB6-4
1 listing from 1 supplier (SkyGeek) · $6.90. Prices refresh weekly.
Description
Approvals and Conformities NSN 5320-00-959-0148 Boeing PN/Spec# BACB30FN6-4 Alternate PN#s HL19PB6-4 Product Attributes Country of Origin United States Shipping Weight 0.003 pounds ECCN EAR99 Manufacturer P/N HL19PB6-4 Schedule B Code 7318.23.0000 Pack Quantity 1 Series HL19PB Material Alloy Steel Thread Class: 3A Thread Direction: Right-Hand Fastener Length: 0.565 Inches Minimum And 0.585 Inches Maximum Head Style: Flush Countersunk Width Between Flats: 0.079 Inches Minimum And 0.081 Inches Maximum Shank Diameter: 0.189 Inches Minimum And 0.190 Inches Maximum Shank Style: Pin-Rivet, Straight, Threaded Head Major Diameter: 0.297 Inches Minimum And 0.302 Inches Maximum Grip Length: 0.255 Inches Maximum Thread Quantity Per Inch: 32 Minimum Tensile Strength: 160000 Pounds Per Square Inch Nominal Thread Size: 0.190 Inches Shear Strength: 95000 Single Pounds Per Square Inch Countersink Angle: 100.0 Degrees Nominal Material: Steel Comp 4140 Overall Or Steel Comp 8740 Overall Or Steel Comp 4130 Overall Material Document And Classification: Mil-S-5626 Mil Spec 1St Material Response Overall Or Mil-S-6049 Mil Spec 2Nd Material Response Overall Or Mil-S-6758 Mil Spec 3Rd Material Response Overall Surface Treatment: Cadmium Overall Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall Thread Series Designator: UNJF
