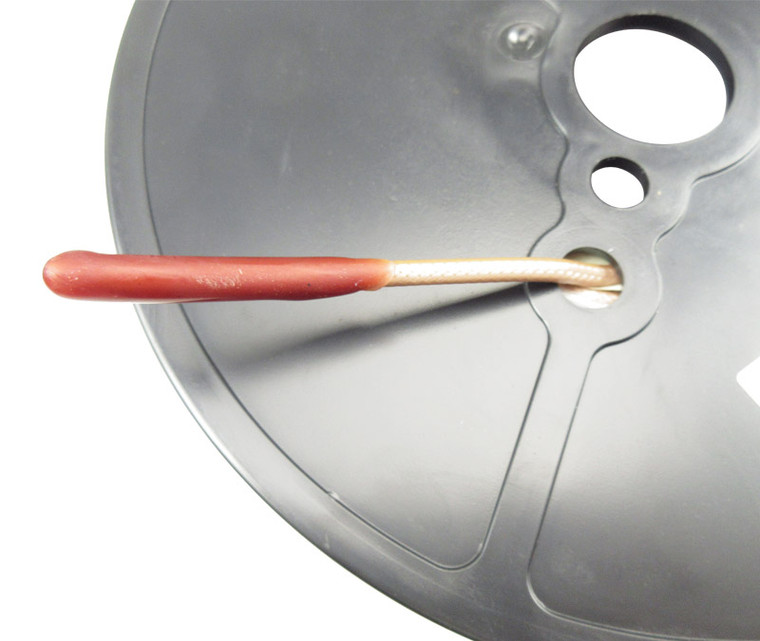

Part M17-110-RG302
1 listing from 1 supplier (SkyGeek) · $7.55. Prices refresh weekly.
Description
Approvals and Conformities NSN 6145-00-493-4084 MIL-SPEC# RG-302/U Product Attributes Country of Origin United States Shipping Weight 0.001 pounds ECCN EAR99 Color Family Black Manufacturer P/N M17/110-RG302 Schedule B Code 8529.90.3800 Pack Quantity 1 Series M17/ Color Black All Coaxial cable is priced by the foot and carries a 100' min order quantity. Cross-Sectional Shape Style: Round Electrical Resistance: 75.0 Ohms Impedance Cross Section Outside Diameter: 0.202 Inches Nominal Iii Conductor Quantity: 1 Conductor Form: Solid Single Conductor Conductor Arrangement And Quantity: 1 Coaxial Voltage Rating: 1700.0 Maximum Root Mean Square (Rms) Operating Voltage Single Conductor Precious Material And Location: Surface Single Conductor Silver And Shield Braid Silver Surface Treatment: Silver Core Conductor Single Conductor Center Conductor (inches) : SCCS (.0253) Dielectric (inches) : PTFE(.146) Shield (inches) : 36SC (.175) Jacket (inches) : PEP-IX (.202) Armor (inches) : NA Weight (lbs / ft) : .040 Impedance ohms - Vp(%) : 75 +/-3 (69.5%) Capacitance (pF/ft) : 19.5 Max Operating Voltage (vrms) : 2300 Temp. Range (°F) : -67 +392
