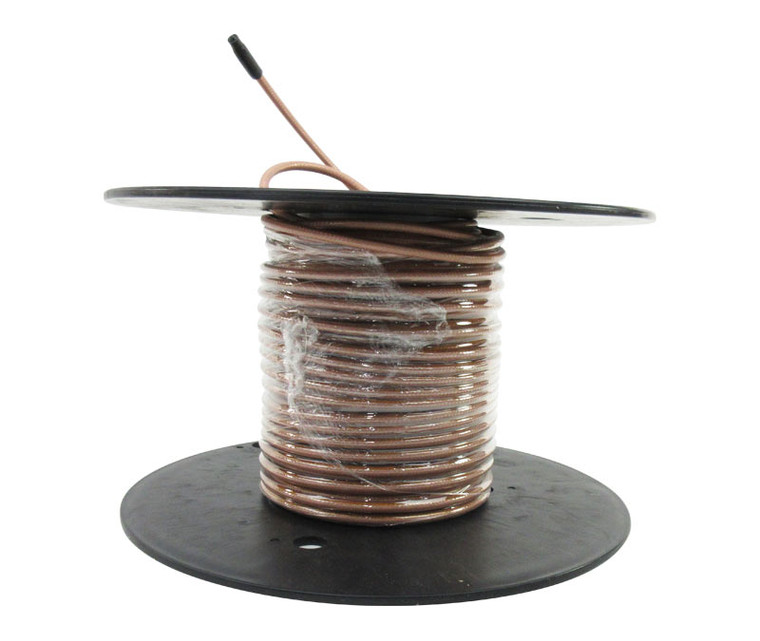

Part M17-128-RG400
1 listing from 1 supplier (SkyGeek) · $780.00. Prices refresh weekly.
Description
Approvals and Conformities NSN 6145-00-542-2773 MIL-SPEC# RG-400/U Alternate PN#s 425-0218-010 Product Attributes Country of Origin United States Shipping Weight 0.1 pounds ECCN EAR99 Color Family Black Manufacturer P/N M17/128-RG400 Schedule B Code 8529.90.3800 Pack Quantity 100 Series M17/ Color Black Cross-Sectional Shape Style: Round Electrical Resistance: 50.0 Ohms Impedance Cross Section Outside Diameter: 0.195 Inches Nominal Iii Conductor Quantity: 1 Nominal Capacitance In Picofarads: 32.0 Per Foot Strand Quantity Per Conductor: 19 Single Conductor Conductor Form: Stranded Single Conductor Round Conductor Size: 20 Awg Single Conductor Strand Awg Size Per Conductor: 32 Single Conductor Conductor Arrangement And Quantity: 1 Coaxial Voltage Rating: 1400.0 Maximum Root Mean Square (Rms) Operating Voltage Single Conductor Material: Copper Core Conductor Single Conductor Material Document And Classification: Astm B298 Assn Std Single Material Response Core Conductor Single Conductor Precious Material And Location: Surface Single Conductor Silver And Surface Shield,Braids Silver Precious Material: Silver Center Conductor (inches) : SC 19/.0080" (.0384) Dielectric (inches) : PTFE (.116) Shield (inches) : 38SC:38SC (.162) Jacket (inches) : PEP-IX (.195) Armor (inches) : NA Weight (lbs / ft) : .050 Impedance ohms - Vp(%) : 50 +/-2 (69.5%) Capacitance (pF/ft) : 29.4 Max Operating Voltage (vrms) : 1900 Temp. Range (°F) : -76 +3
