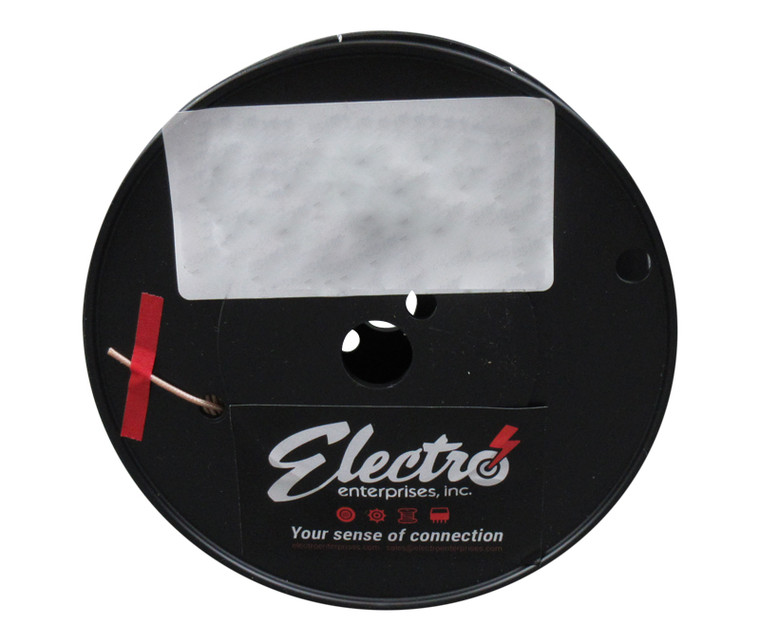

Part M17-93-RG178
1 listing from 1 supplier (SkyGeek) · $215.00. Prices refresh weekly.
Description
Approvals and Conformities NSN 6145-00-812-5034 MIL-SPEC# RG-178B/U MIL-C-17/93 Alternate PN#s 425-1494-000 Product Attributes Country of Origin United States Shipping Weight 0.1 pounds ECCN EAR99 Color Family Black Manufacturer P/N M17/93-RG178 Schedule B Code 8529.90.3800 Pack Quantity 100 Series M17/ Color Black All Coaxial cable is priced by the foot and carries a 100' min order quantity. Cross-Sectional Shape Style: Round Electrical Resistance: 50.0 Ohms Impedance Cross Section Outside Diameter: 0.071 Inches Nominal Iii Conductor Quantity: 1 Nominal Capacitance In Picofarads: 32.0 Per Foot Strand Quantity Per Conductor: 7 Single Conductor Conductor Form: Stranded Single Conductor Round Conductor Size: 28 Awg Single Conductor Strand Awg Size Per Conductor: 36 Single Conductor Conductor Arrangement And Quantity: 1 Coaxial Voltage Rating: 750.0 Maximum Root Mean Square (Rms) Operating Voltage Single Conductor Material: Plastic Fluorinated Ethylene Propylene 3Rd Position Jacket Single Conductor Material: Plastic Polytetrafluoroethylene 1St Position Primary Insulation Single Conductor Material: Steel Core Conductor Single Conductor And Copper Core Conductor Single Conductor Material: Copper 2Nd Position Shield Braid, Metallic Single Conductor Precious Material And Location: Surface Single Conductor Silver And Surface Shield,Braid Silver Precious Material: Silver Surface Treatment: Silver Core Conductor Single Conductor Surfa
