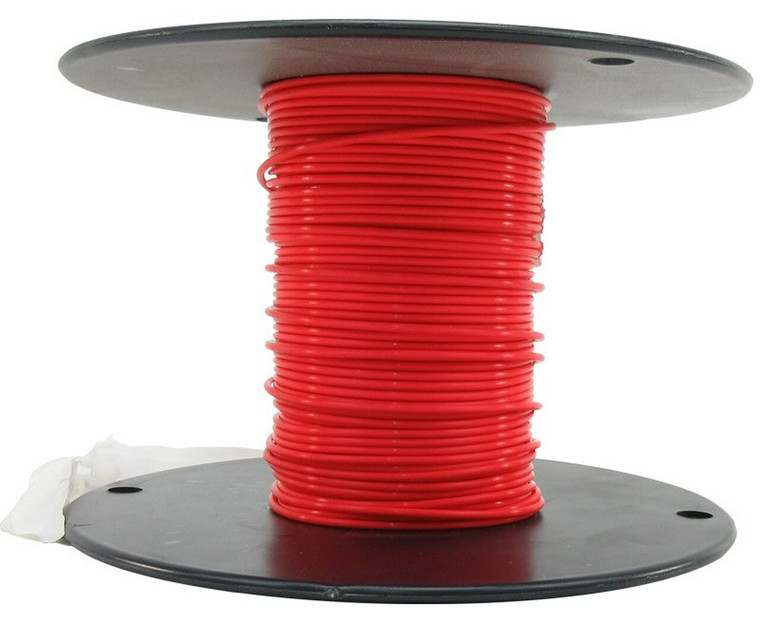

Part M22759-11-10-2

Description

Approvals and Conformities MIL-SPEC# MIL-W-22759/11-10-2 SAE Spec# AS22759/11-10-2 Product Attributes Country of Origin United States Size 10 AWG Shipping Weight 5 pounds ECCN EAR99 Color Family Red Manufacturer P/N M22759/11-10-2 Schedule B Code 8548.90.0100 Pack Quantity 100 Series M22759/11 Color Red Material Plastic PTFE M22759/11-10-2 wire uses a Polytetrfluoroehtylene (PTFE) insulation designed for aerospace applications. Ideal where resistance to high temperatures and high reliability are required.This wire is non-flammable, self-extinguishing, and resists soldering iron contact. It is preferred where smoke emission, current overload conditions, flammability, or mechanical attack may be problems. Features Insulation: Polytetrafluoroethylene (PTFE) Conductor: Silver Plated Copper Conductor Voltage Rating: 600 Volts Temperature: -55°C to +200°C Color: RedGauge (AWG): 10 Stranding: 37/26 O.D. Min (Inches): .135O.D. Max (Inches): .143Resistance @ 20°C OHMS/1000’ max: 1.19 Max Weight - Lbs/1000': 34.90
