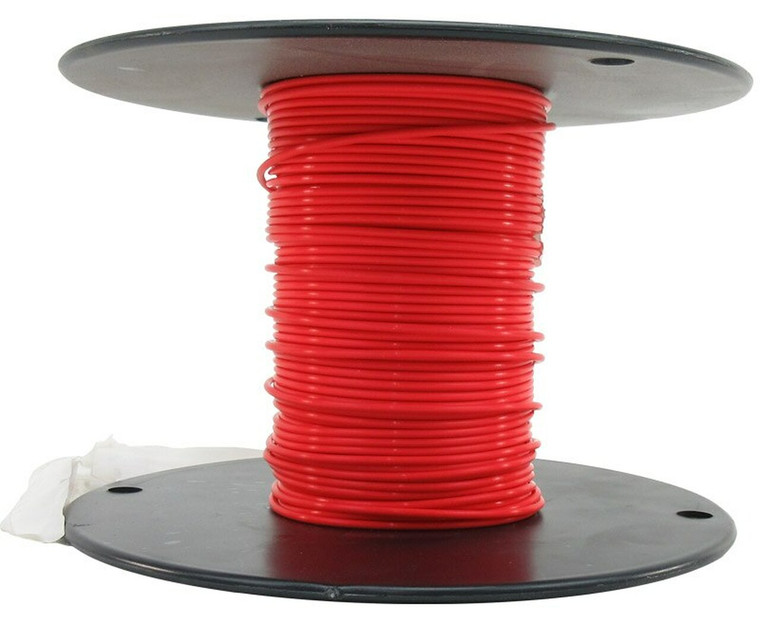

Part M22759-11-20-2
1 listing from 1 supplier (SkyGeek) · $114.00. Prices refresh weekly.
Description
Approvals and Conformities MIL-SPEC# MIL-W-22759/11-20-2 SAE Spec# AS22759/11-20-2 Product Attributes Country of Origin United States Size 20 AWG Shipping Weight 5 pounds ECCN EAR99 Color Family Red Manufacturer P/N M22759/11-20-2 Schedule B Code 8548.90.0100 Pack Quantity 100 Ship Dimensions 0 x 0 x 0 inches Series M22759/11 Color Red Material Plastic PTFE M22759/11-20-2 wire uses a Polytetrfluoroehtylene (PTFE) insulation designed for aerospace applications. Ideal where resistance to high temperatures and high reliability are required.This wire is non-flammable, self-extinguishing, and resists soldering iron contact. It is preferred where smoke emission, current overload conditions, flammability, or mechanical attack may be problems. Features Insulation: Polytetrafluoroethylene (PTFE) Conductor: Silver Plated Copper Conductor Voltage Rating: 600 Volts Temperature: -55°C to +200°C Color: RedGauge (AWG): 20 Stranding: 19/32 O.D. Min (Inches): .056O.D. Max (Inches): .060Resistance @ 20°C OHMS/1000’ max: 9.19 Max Weight - Lbs/1000': 5.15
