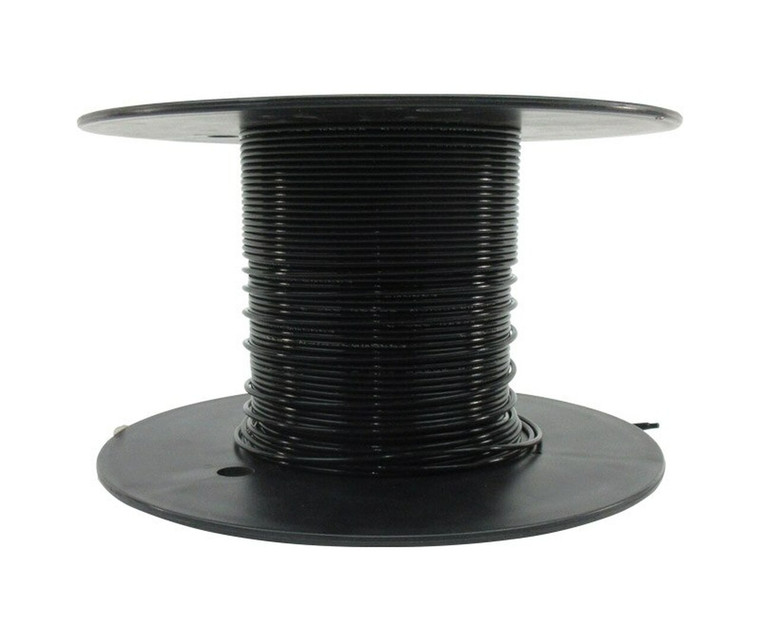

Part M22759-11-24-0

Description

Approvals and Conformities MIL-SPEC# MIL-W-22759/11-24-0 SAE Spec# AS22759/11-24-0 Product Attributes Country of Origin United States Size 24 AWG Shipping Weight 25 pounds ECCN EAR99 Color Family Black Manufacturer P/N M22759/11-24-0 Schedule B Code 8548.90.0100 Pack Quantity 500 Ship Dimensions 0 x 0 x 0 inches Series M22759/11 Color Black Material Plastic PTFE M22759/11-24-0 wire uses a Polytetrfluoroehtylene (PTFE) insulation designed for aerospace applications. Ideal where resistance to high temperatures and high reliability are required.This wire is non-flammable, self-extinguishing, and resists soldering iron contact. It is preferred where smoke emission, current overload conditions, flammability, or mechanical attack may be problems. Features Insulation: Polytetrafluoroethylene (PTFE) Conductor: Silver Plated Copper Conductor Voltage Rating: 600 Volts Temperature: -55°C to +200°C Color: BlackGauge (AWG): 24 Stranding: 19/36 O.D. Min (Inches): .041O.D. Max (Inches): .045Resistance @ 20°C OHMS/1000’ max: 24.30 Max Weight - Lbs/1000': 2.41
