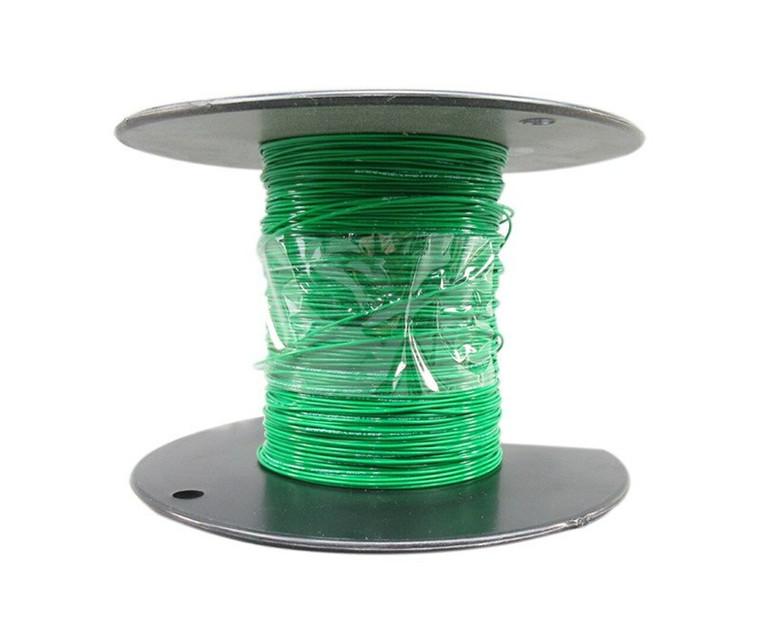

Part M22759-11-26-5

Description

Approvals and Conformities MIL-SPEC# MIL-W-22759/11-26-5 SAE Spec# AS22759/11-26-5 Product Attributes Country of Origin United States Size 26 AWG Shipping Weight 5 pounds ECCN EAR99 Color Family Green Manufacturer P/N M22759/11-26-5 Schedule B Code 8548.90.0100 Pack Quantity 100 Series M22759/11 Color Green Material Plastic PTFE M22759/11-26-5 wire uses a Polytetrfluoroehtylene (PTFE) insulation designed for aerospace applications. Ideal where resistance to high temperatures and high reliability are required.This wire is non-flammable, self-extinguishing, and resists soldering iron contact. It is preferred where smoke emission, current overload conditions, flammability, or mechanical attack may be problems. Features Insulation: Polytetrafluoroethylene (PTFE) Conductor: Silver Plated Copper Conductor Voltage Rating: 600 Volts Temperature: -55°C to +200°C Color: GreenGauge (AWG): 26 Stranding: 19/38 O.D. Min (Inches): .036O.D. Max (Inches): .040Resistance @ 20°C OHMS/1000’ max: 38.40 Max Weight - Lbs/1000': 1.74
