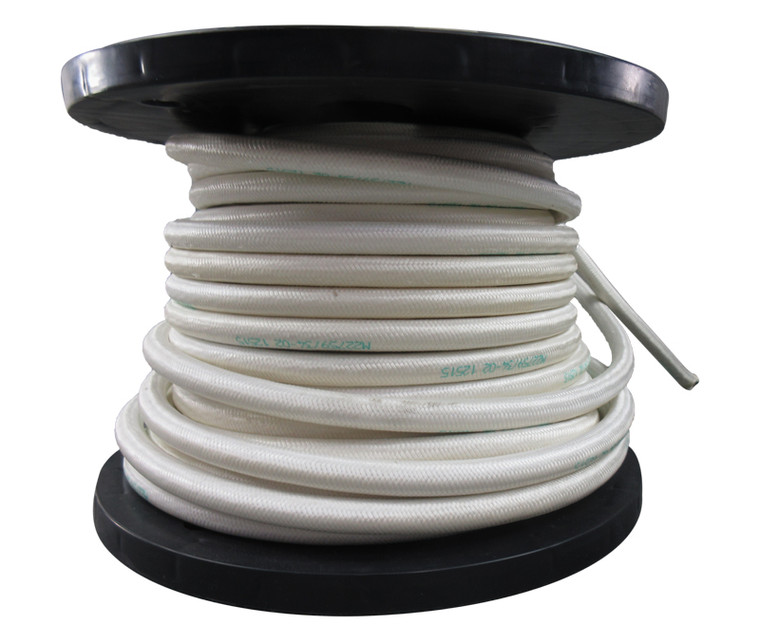

Part M22759-34-00-9
1 listing from 1 supplier (SkyGeek) · $1,332.00. Prices refresh weekly.
Description
Approvals and Conformities NSN 6145-01-154-0257 MIL-SPEC# MIL-W-22759/34-00-9 SAE Spec# AS22759/34-00-9 Product Attributes Country of Origin United States Shipping Weight 3.75 pounds ECCN EAR99 Color Family White Manufacturer P/N M22759/34-00-9 Schedule B Code 8548.90.0100 Pack Quantity 75 Ship Dimensions 0 x 0 x 0 inches Series M22759-34 Conductor Stranding 1330/30 AWG Size 00 Color White Material Plastic PTFE Cross-Sectional Shape Style: 6 Round Temp Rating: 150.0 Deg Celsius Cross Section Outside Diameter: 0.545 Inches Nominal Strand Quantity Per Conductor: 1330 Single Conductor Conductor Form: Stranded Single Conductor Round Conductor Size: 00 Awg Single Conductor Strand Awg Size Per Conductor: 30 Single Conductor Voltage Rating: 600.0 Maximum Root Mean Square (Rms) Operating Voltage Single Conductor Color: White 1St Position Cover Single Conductor Material: Copper Alloy 101 Or Copper Alloy 102 Core Conductor Single Conductor Material Document And Classification: Astm B33 Assn Std All Material Responses (Use Only When All Material Is Controlled By The Same Document And Classifications Are Identical) Core Conductor Singleconductor Surface Treatment: Tin Core Conductor Single Conductor
