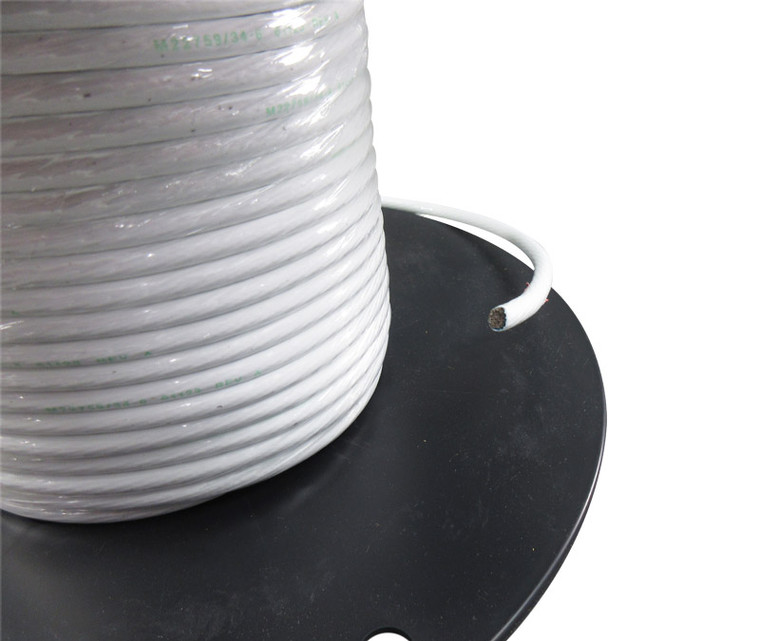

Part M22759-34-6-9

Description

Approvals and Conformities NSN 6145-01-154-0254 MIL-SPEC# MIL-W-22759/34-6-9 SAE Spec# AS22759/34-6-9 Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN EAR99 Color Family White Manufacturer P/N M22759/34-6-9 Schedule B Code 8548.90.0100 Pack Quantity 1 Ship Dimensions 0 x 0 x 0 inches Series M22759-34 Conductor Stranding 133/27 AWG Size 6 Color White Material Plastic PTFE Cross-Sectional Shape Style: Round Temp Rating: 150.0 Deg Celsius Cross Section Outside Diameter: 0.241 Inches Nominal Strand Quantity Per Conductor: 133 Single Conductor Conductor Form: Stranded Single Conductor Round Conductor Size: 6 Awg Single Conductor Strand Awg Size Per Conductor: 27 Single Conductor Voltage Rating: 600.0 Maximum Root Mean Square (Rms) Operating Voltage Single Conductor Color: White 2Nd Position Jacket Single Conductor Material: Copper Core Conductor Single Conductor Material: Plastic Cross-Linked Modified Ethylene Tetrafluoroethylene 2Nd Position Jacket Single Conductor Material: Plastic Cross-Linked Modified Ethylene Tetrafluoroethylene 1St Position Primary Insulation Single Conductor Material Document And Classification: Astm B33 Assn Std Single Material Response Core Conductor Single Conductor Surface Treatment: Tin Core Conductor Single Conductor Surface Treatment Document And Classification: Astm B33 Assn Std Single Treatment Response Core Conductor Single Conductor
