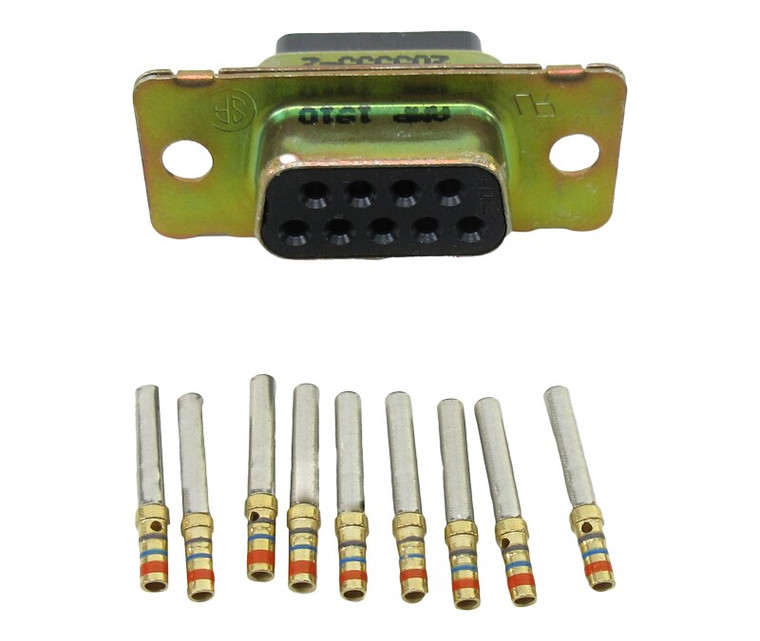

Part M24308-2-1F

Description

Approvals and Conformities NSN 5935-01-282-2054 Product Attributes Country of Origin United States Shipping Weight 0.001 pounds ECCN 9A991.d Manufacturer P/N M24308/2-1F Schedule B Code 8538.90.7080 Pack Quantity 1 Ship Dimensions 4 x 3 x 1 inches Series M24308 Body Style: Straight Shape Overall Length: 1.198 Inches Minimum And 1.228 Inches Maximum Overall Height: 0.663 Inches Nominal Overall Width: 0.479 Inches Minimum And 0.509 Inches Maximum Environmental Protection: Corrosion Resistant And Humidity Resistant And Shock Resistant And Vibration Resistant Unthreaded Mounting Hole Diameter: 0.115 Inches Minimum And 0.125 Inches Maximum Distance Between Mounting Facility Centers: 0.979 Inches Minimum And 0.989 Inches Maximum Mating End Quantity: 1 Contact Position Arrangement Style: 7 Single Mating End Contact Removability: Removable Single Mating End Single Contact Grouping Polarization Method: Mating End Shell Type: Solid Connector Locking Method: Friction Terminal Location: Back Single Mating End Single Contact Grouping Contact Material: Copper Alloy Single Mating End Single Contact Grouping Contact Surface Treatment: Gold Single Mating End Single Contact Grouping Insert Material: Plastic Diallyl Phthalate Single Mating End Contact Surface Treatment Document And Classification: Mil-G-45204,Ty Ii,Gr C,Cl 1 Mil Spec Single Treatment Response Single Mating End Single Contact Grouping Terminal Type: Crimp Single Mating End Single Contact G
