Part M27500-20SD2T23
2 listings from 2 suppliers (CostAero, SkyGeek) · $1.72 – $2.42. Prices refresh weekly.
Description

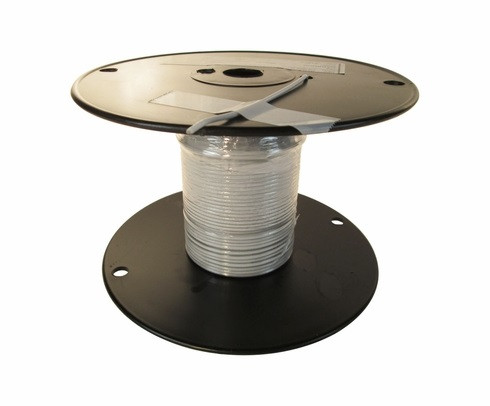

SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins. M27500-20SD2T23 meets SAE AS22759/34 specifications with a cross-linked, modified ETFE insolation surrounding an aromatic polyamide braid that provides an EMI/RFI shielding and features a tin-plated, copper conductor with a temperature rating of 150°C — offering both flexibility and durability. This M27500-20SD2T23 extruded XL-ETFE tefzel wire has two, tin-plated 20 AWG conductors with extruded XL-ETFE insolation, a 150°C rating. Colored white. Features 600 volt rating 150°C temperature rating Excellent thermal stability High reliability High break strength and flex life High abrasion resistance Specifications AWG Size: 20 Conductor Stranding: 19/32 Number of Strands: 19 Strand Size: 34 Numbers of Conductors: 2 Outside Diameter: 0.167 in, maximum Conductor Material: Tinned Copper Insulation Material: Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE) Shield: Tinned Copper Jacket Material: Extruded XL-ETFE Jacket Color: White Weight Approx: 27.5 lb/MFT Operating Temperature: 150°C, maximum Voltage: 600 volts NEMA Type: WC 27500 Mil-Spec: M27500
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
SkyGeek
CostAero
