Part M83248/1-214

Price trend · weekly low by condition

Description

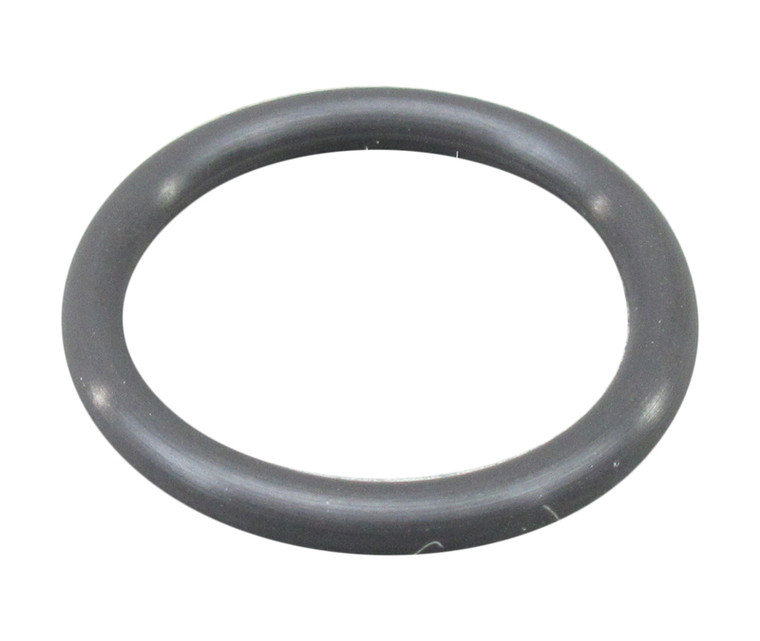

Approvals and Conformities NSN 5331-00-165-1941 MIL-SPEC# MIL-R-83248 Alternate PN#s AS3209-214, AS568-214, MS9388-214, ST1050-214, S9413-214 Product Attributes Country of Origin United States Shipping Weight 0.075 pounds ECCN 9A991.d Color Family Black Manufacturer P/N M83248/1-214 Schedule B Code 4016.93.0000 Pack Quantity 25 Series M83248-1 Inside Diameter 1 Outside Diameter 1-1/4 Width 1/8 Color Black Material Rubber M83248/1-214, as the name suggest, is an O-ring composed of fluorocarbon rubber. It has a 1" inner diameter, a 1-1/4" outer diameter, and a 1/8" width. M83248 series O-rings are made of Viton, or fluorocarbon rubber, which has extremely good fuel and heat resistance and is ideally suited for aircraft fuel system applications. This O-ring conforms to the following specification: MIL-R-83248. Check the features for more details. Cross-Sectional Height: 0.135 Inches Minimum And 0.143 Inches Maximum Center Hole Diameter: 0.974 Inches Minimum And 0.994 Inches Maximum Peripheral Diameter: 1.262 Inches Nominal Elongation Percentage: 125 Maximum Hardness Rating: 75.0 Shore Durometer A Nominal Overall Criticality Code Justification: Zzzw Material: Rubber Fluorocarbon Class Fpm Overall Departure From Cited Document: Material Will Be In Accordance With Ships Parts Control Center Activity Hx Quality Control, Manufacturing And Testing Specifications
