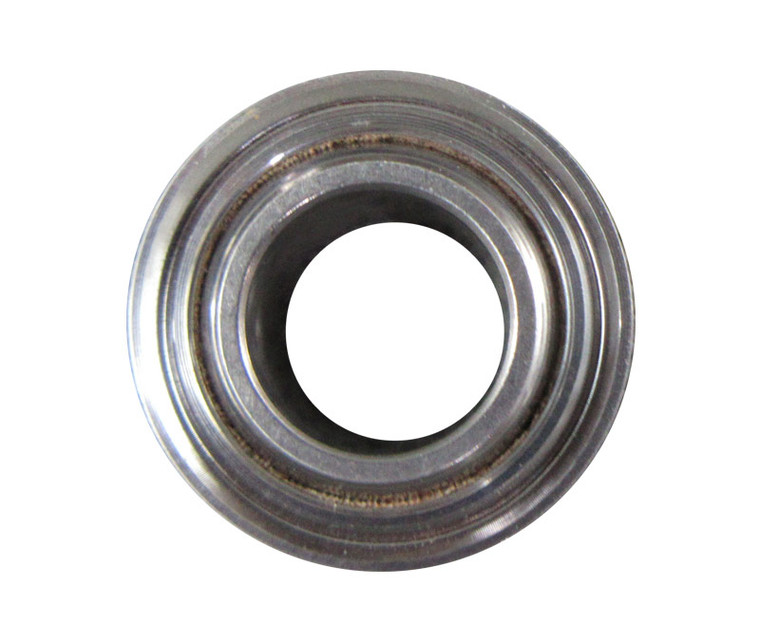

Part MS14101-9
1 listing from 1 supplier (SkyGeek) · $32.93. Prices refresh weekly.
Description
Approvals and Conformities NSN 3120-01-033-2773 Product Attributes Country of Origin United States Shipping Weight 0.013 pounds ECCN 2A991.e Manufacturer P/N MS14101-9 Schedule B Code 8482.30.0040 Pack Quantity 1 Ship Dimensions 3 x 2 x 1 inches Series MS14101 Bore .5625 Diameter 1.0937 Bore Diameter: 0.5620 Inches Minimum And 0.5625 Inches Maximum Outer Member Outside Diameter: 1.0932 Inches Minimum And 1.0937 Inches Maximum Outer Member Width: 0.4320 Inches Minimum And 0.4420 Inches Maximum Inner Member Width: 0.5600 Inches Minimum And 0.5620 Inches Maximum Static Radial Load Rating: 23200 Pounds Hardness Rating: 28.0 Rockwell C Minimum Outer Race Member And 37.0 Rockwell C Maximum Outer Race Member Hardness Rating: 55.0 Rockwell C Minimum Inner Member And 62.0 Rockwell C Maximum Inner Member Material: Plastic Polytetrafluoroethylene Race Liner Material: Steel Comp 440C Inner Member Style Designator: With Insert And/Or Liner With Staking Groove
