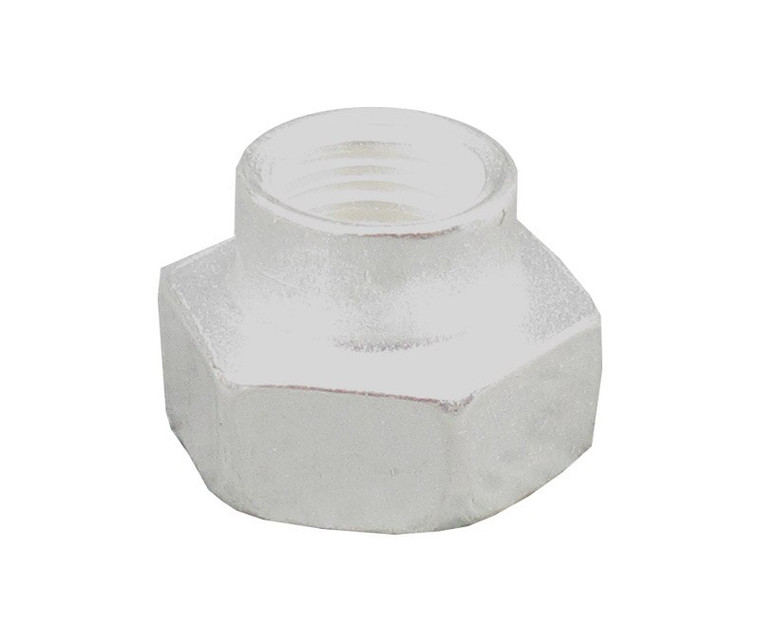

Part MS20500-428
2 listings from 2 suppliers (SkyGeek, Univair) · $3.02 – $74.40. Prices refresh weekly.
Description

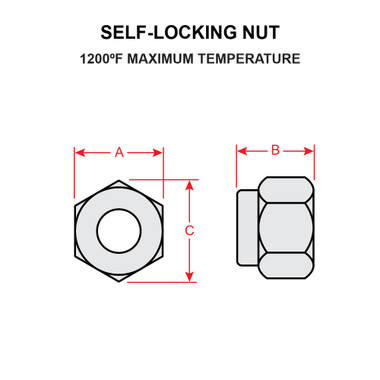

Approvals and Conformities NSN 5310-00-298-2747 Product Attributes Country of Origin United States Shipping Weight 0.01 pounds ECCN 9A991.d Manufacturer P/N MS20500-428 Schedule B Code 7318.16.0000 Pack Quantity 10 Ship Dimensions 0 x 0 x 0 inches Series MS20500 Thread 1/4-28 Height .328-.280 Width .439-.430 Material Stainless Steel Thread Class: 3B Thread Direction: Right-Hand Locking Feature: Prevailing Torque All Metal Design Nut Style: Hexagon Nut Height: 0.280 Inches Minimum And 0.328 Inches Maximum Width Across Flats: 0.430 Inches Minimum And 0.439 Inches Maximum Temp Rating: 1200.0 Deg Fahrenheit Nominal Thread Series: Unjf Thread Quantity Per Inch: 28 Nominal Thread Size: 0.250 Inches Countersink Angle: 88.0 Degrees Nominal Nut Bearing Surface Type: Chamfered Bearing Surface Finish: 125.0 Microinches Material: Steel Corrosion Resisting Overall Precious Material And Location: All Surfaces Silver Precious Material: Silver Surface Treatment: Silver Overall Surface Treatment Document And Classification: Ams 2410 Assn Std Single Treatment Response Overall
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
