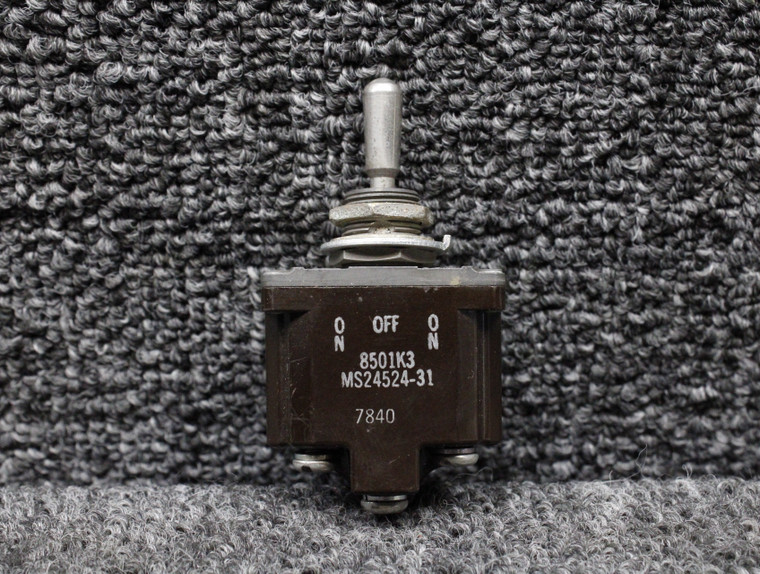

Part 2TL1-5

Cross references

Supplier data links this part number to: 2TL15, 8501K3

Description

Approvals and Conformities NSN 5930-00-581-8137 MIL-SPEC# MIL-DTL-3950 MIL-S-3950 Alternate PN#s MS24524-31 Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN 9A991.d Manufacturer P/N 2TL1-5 Schedule B Code 8536.50.9065 Pack Quantity 1 Body Style : Bushing Mount Hazardous Locations/Environmental Protection : Submersible Overall Length : 1.340 Inches Maximum Overall Height : 2.560 Inches Nominal Overall Width : 0.910 Inches Maximum Bushing Length : 0.470 Inches Nominal Body Length : 1.340 Inches Maximum Body Width : 0.910 Inches Maximum Body Height : 0.970 Inches Nominal Actuator Style : Round Actuator Diameter : 0.240 Inches Nominal Actuator Height : 0.660 Inches Minimum And 0.720 Inches Maximum Actuator Position-Action Relationship : Up Position Maintained And Down Position Momentary And Center Position Maintained Maximum Voltage Rating In Volts : 115.0 Ac And 28.0 Dc Inclosure Type : Fully Inclosed Mounting Method : Threaded Bushing Features Provided : Actuator Seal Thread Quantity Per Inch : 32 Nominal Thread Size : 0.469 Inches Nonpile-Up Contact Arrangement : 2 Pole, Double Throw, One Position Momentary, Two Positions Maintained Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage : 18.000 Amperes Resistive Dc And 10.000 Amperes Inductive Dc And 5.000 Amperes Lamp Dc And 11.000

Price spread · 3 priced listings

Each dot is one listing (hover for supplier & condition); color = condition.

Price by condition · median
