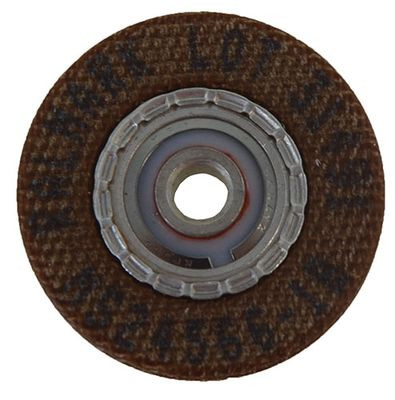

Part MS24566-1B
3 listings from 3 suppliers (McFarlane Aviation, SkyGeek, Yingling Aviation) · $33.59 – $73.71. Prices refresh weekly.
Description
Approvals and Conformities NSN 3020-00-517-1330 Product Attributes Country of Origin United States Shipping Weight 0.03 pounds ECCN 9A991.d Color Family Brown Manufacturer P/N MS24566-1B Schedule B Code 8803.30.0010 Pack Quantity 1 Series MS24566 Cable Size 1/16" & 3/32" Outside Dia. 1.250" Groove Dia. 0.972" Hub Dia. 0.1900" Color Brown Material Phenolic Groove Depth: 0.139 Inches Minimum And 0.140 Inches Maximum Groove Width: 0.300 Inches Nominal Outside Diameter: 1.240 Inches Minimum And 1.260 Inches Maximum Overall Length: 0.292 Inches Minimum And 0.297 Inches Maximum Bore Diameter: 0.189 Inches Minimum And 0.190 Inches Maximum Bore Length: 0.296 Inches Minimum And 0.297 Inches Maximum Groove Radius: 0.052 Inches Minimum And 0.055 Inches Maximum Material And Location: Plastic, Phenolic Overall Face Width: 0.240 Inches Minimum And 0.250 Inches Maximum Design Form: Plain Bore Type: Straight Bearings: Included Groove Quantity: 1 Counterbore Feature: Not Included Bearing Quantity: 1 Keying Facility: Not Included Split Hub Feature: Not Included Web/Spoke Relationship To Face Centerline: Not Offset Lightening Hole: Not Included Integral Cooling Vane: Not Included Groove Shape: U Bore Feature: Included Bearing Type: Ball Hub End Outside Diameter And Location: 0.624 Inches Minimum Both Ends And 0.625 Inches Maximum Both Ends Distance From Outside Flange/Rim To Hub End And Location: 0.023 Inches Nominal Both Ends Styl
