Part MS24694C59
1 listing from 1 supplier (SkyGeek) · $6.41. Prices refresh weekly.
Description

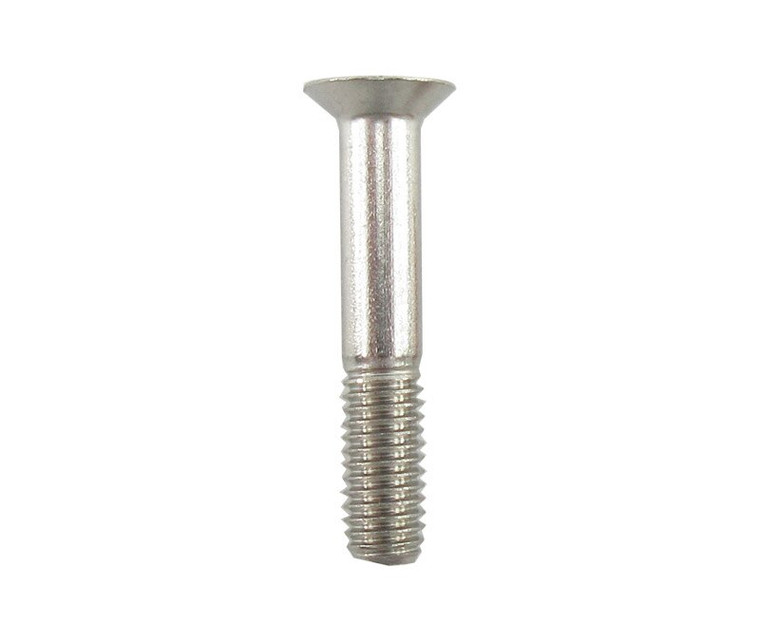

Approvals and Conformities NSN 5305-00-900-3255 Product Attributes Country of Origin United States Shipping Weight 0.001 pounds ECCN EAR99 Manufacturer P/N MS24694C59 Schedule B Code 7318.15.2000 Pack Quantity 1 Series MS24694 Thread Size 10-32" Length 1/3-32" Material Stainless Steel The MS24694C59 is a 100° countersunk machine screw composed of corrosion-resistant steel. The specifications are as follows: *Unless otherwise noted, values are in inches Material: CRES Steel Surface Treatment: Passivate Countersink Angle: 100 degrees Thread Class: 3A Thread Direction: Right-hand Thread Length Range: .891 to 1.031 Thread Quantity (per inch): 32 Fastener Length: 1.078 to 1.125 Head Style: Flat (countersunk) Head Diameter Range: .327 to .385 Nominal Thread Diameter: .190 Minimum Tensile Strength (lbs/sq. in): 85000
