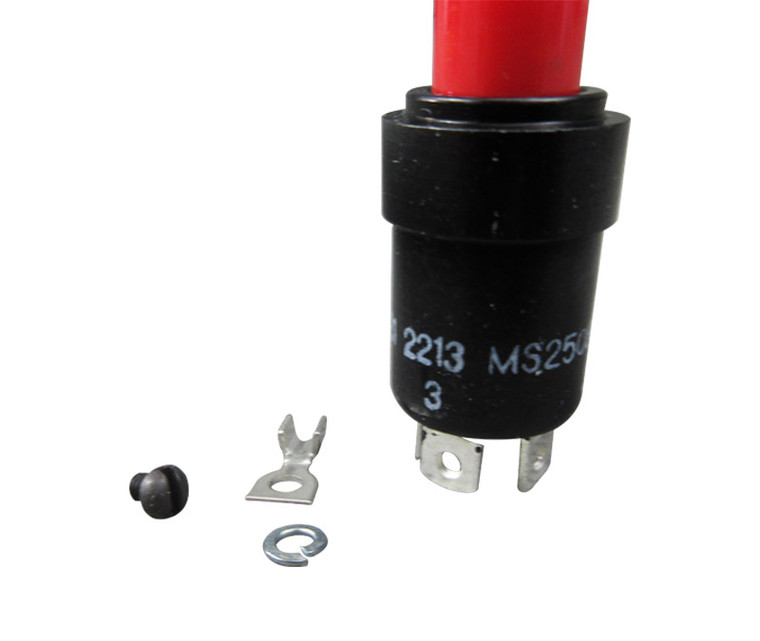

Part MS25089-3AR
1 listing from 1 supplier (SkyGeek) · $17.82. Prices refresh weekly.
Description
Approvals and Conformities NSN 5930-00-802-3732 Product Attributes Country of Origin United States Shipping Weight 0.02 pounds ECCN EAR99 Manufacturer P/N MS25089-3AR Schedule B Code 8536.50.9035 Pack Quantity 1 Series MS25089 Body Style: Panel Mount Hazardous Locations/Environmental Protection: Waterproof Overall Length: 1.375 Inches Maximum Overall Height: 0.622 Inches Nominal Overall Width: 0.622 Inches Nominal Body Diameter: 0.562 Inches Nominal Body Length: 0.969 Inches Nominal Case Material: Plastic Actuator Diameter: 0.370 Inches Minimum And 0.377 Inches Maximum Actuator Height: 0.250 Inches Nominal Actuator Color: Red Single Actuator Maximum Voltage Rating In Volts: 115.0 Ac And 28.0 Dc Inclosure Type: Fully Inclosed Mounting Method: Panel Features Provided: Actuator Seal Nonpile-Up Contact Arrangement: 1 Two Circuit, Double Break/Double Make, One Position Momentary Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage: 10.000 Amperes Resistive Dc And 3.000 Amperes Inductive Dc And 3.000 Amperes Lamp Dc And 10.000 Amperes Resistive Ac And 5.000 Amperes Inductive Ac And 3.000 Amperes Lamp Ac Test Data Document: 81349-Mil-S-8805 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requiremen
