Part MS25253-1

‹ Parts search

Cessna · 7 listings from 5 suppliers (Aircraft Parts & Salvage, BAS Part Sales, Safe Skies Parts, SkyGeek, Yingling Aviation) · $20.00 – $97.50. Prices refresh weekly.

from $20
from $34
from $59

Cross references

Supplier data links this part number to: V31001

Price trend · weekly low by condition

WeekConditionListingsLowAvg
2026-W35used 4$20 $46
2026-W35new 2$59 $78

Description

Approvals and Conformities MIL-SPEC# MIL-PRF-8805/27 Piper PN/Spec# 487-804 Alternate PN#s V3-1, V3-13, V3-1001 Product Attributes Country of Origin United States Shipping Weight 0.1 pounds ECCN 9A991.d Manufacturer P/N MS25253-1 Schedule B Code 8536.50.8928 Pack Quantity 1 Approvals/References/Specs Piper Aircraft: 487-804 Embraer S.A.: 6412011 Aeronautical Standards: AN3234-1 US Tank & Automotive Command: 8675848 US Military: MIL-PRF-8805/27 Body Style: Hole Mounted Hazardous Locations/Environmental Protection: Dustproof Overall Length: 1.375 Inches Nominal Center To Center Distance Between Mounting Facilities Parallel To Length: 0.872 Inches Minimum And 0.878 Inches Maximum Overall Height: 0.875 Inches Nominal Overall Width: 0.415 Inches Maximum Body Length: 1.094 Inches Nominal Body Width: 0.415 Inches Maximum Body Height: 0.625 Inches Nominal Case Material: Plastic Unthreaded Mounting Hole Diameter: 0.113 Inches Minimum And 0.116 Inches Maximum Center To Center Distance Between Mounting Facilities Parallel To Height: 0.403 Inches Minimum And 0.409 Inches Maximum Actuator Length: 0.110 Inches Nominal Actuator Style: Rectangular Actuator Height: 0.020 Inches Nominal Actuator Width: 0.160 Inches Minimum And 0.170 Inches Maximum Actuator Free Position Height: 0.625 Inches Maximum Maximum Voltage Rating In Volts: 115.0 Ac And 28.0 Dc End Item Identification: Missile Minuteman Lgm-30; Fire Control System, Mk 92 (Fcs); Aircraft, Inclosu

Price spread · 7 priced listings

$20
$59
$98
median Aircraft Parts & Salvage · $20 · used Micro Switch Fuel Selector Switch Assembly (MS25253-1) (click to open at supplier) SkyGeek · $34 Military Standard MS25253-1 Switch, Sensitive (click to open at supplier) BAS Part Sales · $45 · used MS25253-1 (Alt: V3-1001) Micro Switch Assembly Set of 2 (click to open at supplier) Yingling Aviation · $59 · new MS25253-1 (click to open at supplier) BAS Part Sales · $60 · used MS-25253-1 Micro Switch Assembly (click to open at supplier) BAS Part Sales · $60 · used MS25253-1 (Alt: V3-1001) Micro Switch Cessna 414 Fuel Selector Switch Set (click to open at supplier) Safe Skies Parts · $98 · new Cessna 310 / 310R Switch With 8130 P/N MS25253-1 LOT OF 2 NOS (0125-923) (click to open at supplier) $20 $98

Each dot is one listing (hover for supplier & condition); color = condition.

Price by condition · median

unlisted (1) $34
used (4) $52
new (2) $78
Micro Switch Fuel Selector Switch Assembly (MS25253-1) Aircraft Parts & Salvage
Micro Switch Fuel Selector Switch Assembly (MS25253-1)
Removed from 1976 Cessna 340A S#340A0112
used
$20.00 view at supplier ↗

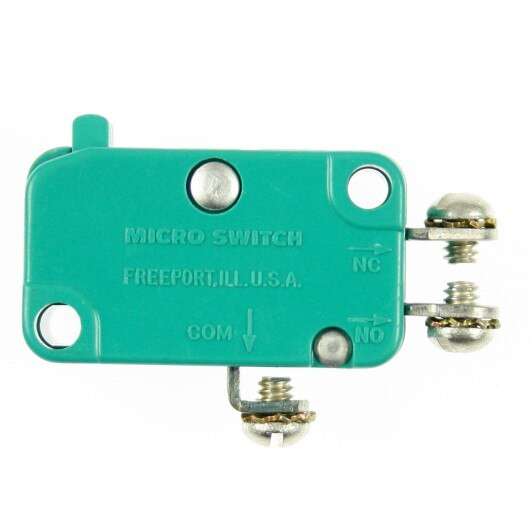

Military Standard MS25253-1 Switch, Sensitive SkyGeek
Military Standard MS25253-1 Switch, Sensitive
Approvals and Conformities MIL-SPEC# MIL-PRF-8805/27 Piper PN/Spec# 487-804 Alternate PN#s V3-1, V3-13, V3-1001 Product Attrib…
$34.11 view at supplier ↗
MS25253-1 (Alt: V3-1001) Micro Switch Assembly Set of 2 BAS Part Sales
MS25253-1 (Alt: V3-1001) Micro Switch Assembly Set of 2
alt: V3-1001
Microswitch
used
$45.00 view at supplier ↗
🔩 Yingling Aviation
MS25253-1
SWITCH
new
$59.00 view at supplier ↗

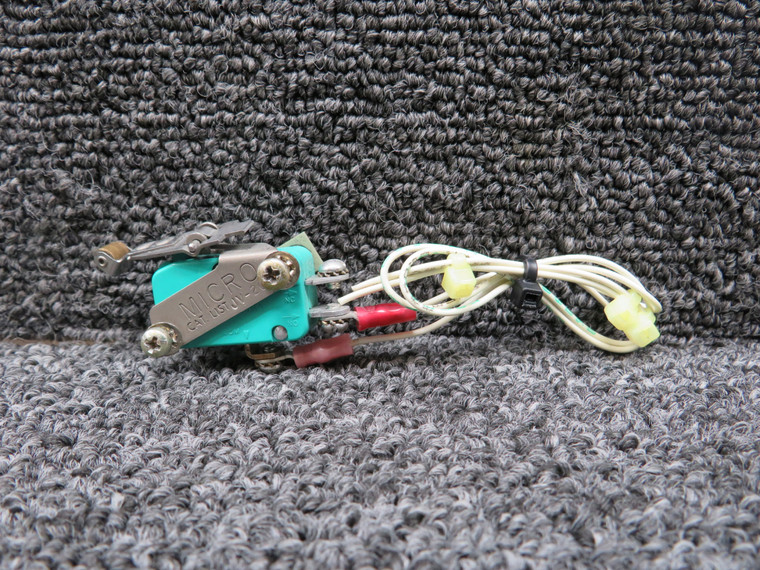

MS-25253-1 Micro Switch Assembly BAS Part Sales
MS-25253-1 Micro Switch Assembly
Micro
used
$60.00 view at supplier ↗
MS25253-1 (Alt: V3-1001) Micro Switch Cessna 414 Fuel Selector Switch Set BAS Part Sales
MS25253-1 (Alt: V3-1001) Micro Switch Cessna 414 Fuel Selector Switch Set
alt: V3-1001
Micro Switch
used
$60.00 view at supplier ↗
Cessna 310 / 310R Switch With 8130 P/N MS25253-1 LOT OF 2 NOS (0125-923) Safe Skies Parts
Cessna 310 / 310R Switch With 8130 P/N MS25253-1 LOT OF 2 NOS (0125-923)
Cessna 310 / 310R Switch With 8130. P/N MS25253-1. LOT OF 2. NEW OLD STOCK. Guaranteed to pass inspection or your money back. 30 Day Money…
Cessna
new
$97.50 view at supplier ↗

Listed under cross-referenced part numbers

Micro 5-65 Micro Switch (V3-1001) Aircraft Parts & Salvage
V31001 Micro 5-65 Micro Switch (V3-1001)
$6.37 view ↗
V3-1001 (Alt: MS25253-1) Micro-Switch Sensitive Switch BAS Part Sales
V31001 V3-1001 (Alt: MS25253-1) Micro-Switch Sensitive Switch
$30.00 view ↗
V3-1001 Piper PA-31T Nose Baggage Door Switch Assembly (Casing Cracked)(C20) BAS Part Sales
V31001 V3-1001 Piper PA-31T Nose Baggage Door Switch Assembly (Casing Cracked)(C20)
$30.00 view ↗

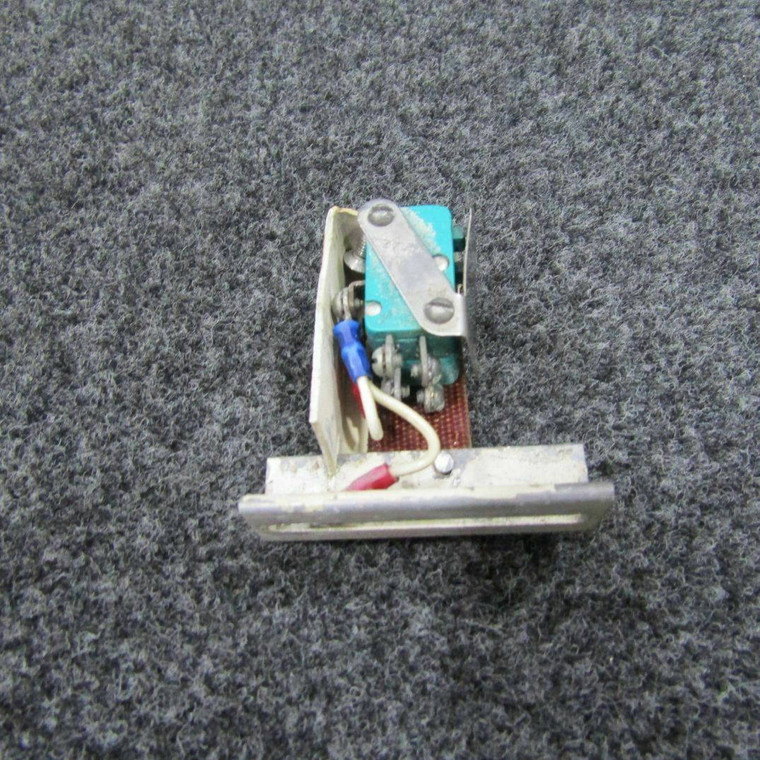

V3-1001 Piper PA31T Nose Baggage Door Switch Assembly (Chunk Missing) (C20) BAS Part Sales
V31001 V3-1001 Piper PA31T Nose Baggage Door Switch Assembly (Chunk Missing) (C20)
$30.00 view ↗
V3-1001 (Alt: MS25253-1) Micro Switch Set of 3 BAS Part Sales
V31001 V3-1001 (Alt: MS25253-1) Micro Switch Set of 3
$50.00 view ↗
