Part MS27194-24
1 listing from 1 supplier (SkyGeek) · $36.00. Prices refresh weekly.
Description

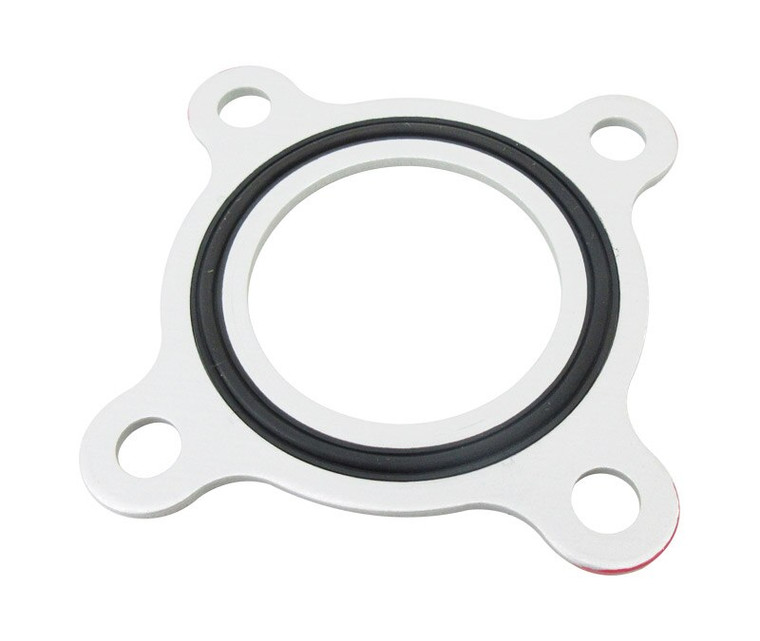

Approvals and Conformities NSN 5330-00-898-9594 Product Attributes Country of Origin United States Size 1-1/2" Shipping Weight 0.001 pounds ECCN 9A991.d Manufacturer P/N MS27194-24 Schedule B Code 8803.30.0010 Pack Quantity 1 Ship Dimensions 4 x 4 x 0 inches Series MS27194 Tube Outside Diameter 1-1/2" Material Aluminum/Rubber The MS27194-24 is a plain metal/rubber gasket that is designed to offer fuel resistance as well as witstand temperatures between -65 and 160 degrees Fahrenheit. Here are more specifications: *Unless otherwise noted, values are in inches Material: Aluminum (alloy 6061) and synthetic rubber (butadiene-acrylonitrile) Surface Treatment: Anodized Aperture Diameter Range: 1.367 to 1.377 Bolt Hole Quantity: 4 Bolt Circle Diameter Range: 2.558 to 2.568 Cross-Sectional Shape Style: Metal and synthetic rubber Gage Ring Thickness Range: .076 to .084 Hole Diameter Range: .261 to .276 Nominal Overall Width: 2.375 Nominal Cross-Sectional Thickness: .120 Nominal Hardness Rating (Durometer): 65 Outside Corner Radius Range: .266 to .297 Outside Corner Inverted Radius Range: .266 to .297 Side Radius From Gasket Center Range: 1.057 to 1.067 Style Designator: Non-circular NOTE: The MS27194 has been canceled and superseded by SAE-AS27194
