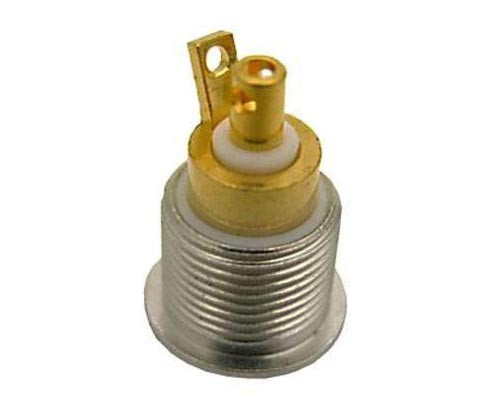

Part MS90335-3
1 listing from 1 supplier (SkyGeek) · $46.67. Prices refresh weekly.
Description
Approvals and Conformities NSN 5935-00-902-4389 Product Attributes Country of Origin United States Shipping Weight 0.02 pounds ECCN EAR99 Manufacturer P/N MS90335-3 Schedule B Code 8536.90.8085 Pack Quantity 1 Ship Dimensions 1 x 0 x 0 inches Special Features: Material Of Body Is Brass And Insulator Is Polytetrafluoraethylene. Center Contact Is Tempered And Heat Treated Beryllium Copper. The Solder Lug Is Tempered Brass. Center And Ground Contacts Are Gold-Plated Copper. Hardware Is Electrodeposited Nickel Overcopper. Female Center Contact Fingers Closed Down Uniformly To Meet 4 Oz Minimum Withdrawal Force. To Ensure Electrical Continuity, The Body Shall Meet A Minimum Withdrawal Force Of 1Lb. Captivation Of Insulator And Center Contact Will Maintain 12 Poundsforce When Applied From Interface End. Manufacturers Identification To Be Permanently Stamped In Metal Part Of Receptacle. Insulator Shall Not Exceed Diameter Of Body.
