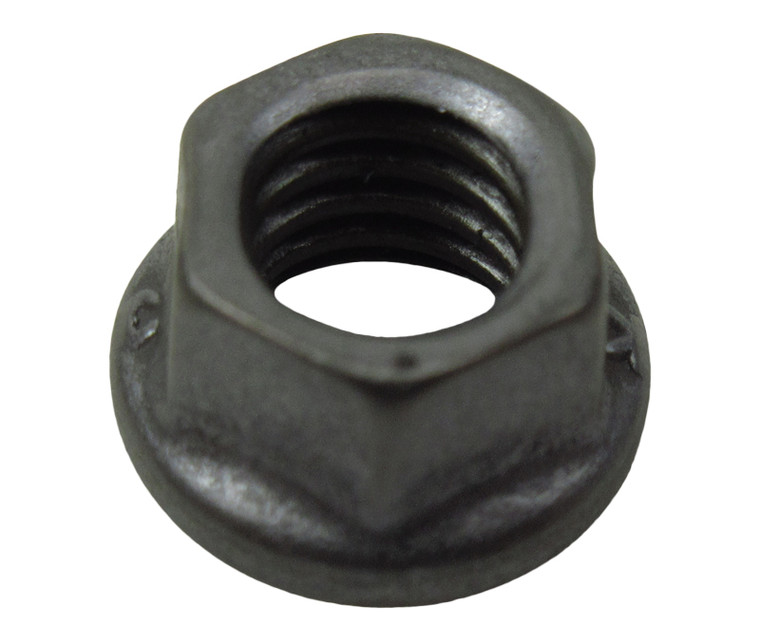

Part NAS1291C3M
2 listings from 2 suppliers (SkyGeek, TC Air Parts) · $2.62 – $3.80. Prices refresh weekly.
Description
Approvals and Conformities NSN 5310-00-894-3638 Product Attributes Country of Origin United States Shipping Weight 0.03 pounds ECCN EAR99 Manufacturer P/N NAS1291C3M Schedule B Code 7318.16.0000 Pack Quantity 1 Material Crescent Steel Thread Class: 3B\n Thread Direction: Right-Hand\n Locking Feature: Prevailing Torque All Metal Design\n Washer Outside Diameter: 0.330 Inches Maximum\n Lubrication: Dry Film Lubricant\n Overall Height: 0.154 Inches Minimum And 0.188 Inches Maximum\n Nut Style: Hexagon\n Washer Thickness: 0.015 Inches Minimum\n Width Across Flats: 0.243 Inches Minimum And 0.252 Inches Maximum\n Temp Rating: 450.0 Deg Fahrenheit Nominal\n Thread Series: Unf\n Thread Quantity Per Inch: 32\n Nominal Thread Size: 0.190 Inches\n Criticality Code Justification: Feat\n Special Features: Fluorescent Penetrant Inspect\n Material: Iron Alloy 660 Overall\n Material Document And Classification: Ams 5735 Assn Std Single Material Response Overall\n Surface Treatment: Passivate Overall\n Test Data Document: 81349-Mil-N-25027 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
