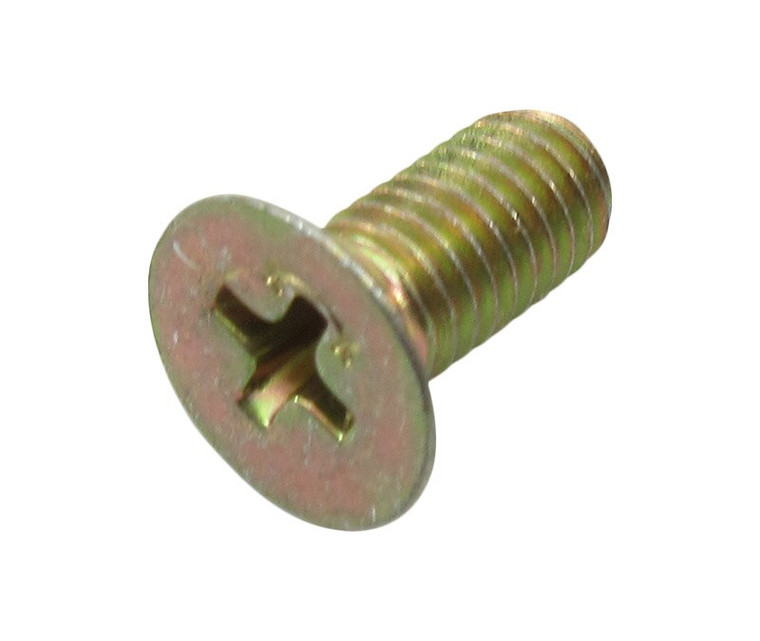

Part NAS514P1032-7P
1 listing from 1 supplier (SkyGeek) · $14.00. Prices refresh weekly.
Description
Approvals and Conformities NSN 5305-00-855-8218 Product Attributes Country of Origin United States Size 10-32 x 7/16" Shipping Weight 0.025 pounds ECCN EAR99 Manufacturer P/N NAS514P1032-7P Schedule B Code 7318.15.2000 Pack Quantity 25 Series NAS514P Thread Size 10-32" Length 7/16" Material Alloy Steel Thread Class: 3A Thread Direction: Right-Hand Thread Length: 0.296 Inches Minimum Fastener Length: 0.438 Inches Nominal Head Style: Flat Countersunk Head Diameter: 0.332 Inches Minimum And 0.385 Inches Maximum Internal Drive Style: Cross Recess Type 1 Nominal Thread Diameter: 0.190 Inches Thread Quantity Per Inch: 32 Minimum Tensile Strength: 125000 Pounds Per Square Inch Hardness Rating: 26.0 Rockwell C Minimum And 32.0 Rockwell C Maximum Countersink Angle: 99.0 Degrees Minimum And 101.0 Degrees Maximum Screw Material: Steel Comp 4037 Or Steel Comp 8630 Screw Surface Treatment: Cadmium And Chromate Screw Surface Treatment Document And Classification: Qq-P-416 Ty 2 Cl 3 Fed Spec All Treatment Responses Thread Series Designator: Unjf Specification/Standard Data: 80205-NAS514 Professional/Industrial Association Standard
