Part PAS-4500-100

Description

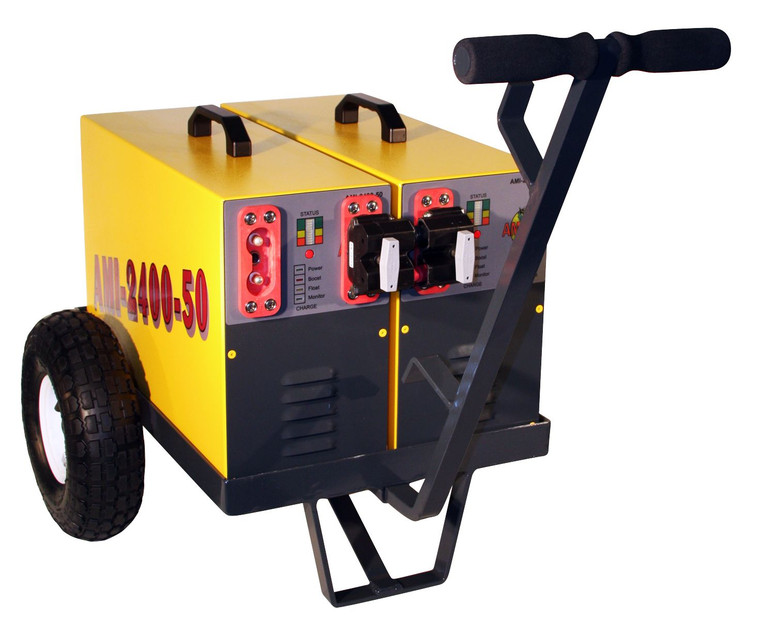

Approvals and Conformities Alternate PN#s AMI-4500-100 Product Attributes Country of Origin United States Shipping Weight 240 pounds ECCN 5A991 Manufacturer P/N PAS-4500-100 Schedule B Code 8504.40.9580 Pack Quantity 1 Ship Dimensions 22 x 16 x 12 inches The PAS-4500-100 is two PAS-2400-50's in parallel, this configuration will give you 4500 peak amps with 100 amps of continuous power. The PAS-4500 is supplied with a DC parallel coupling cable, and DC to aircraft cable. These units can be used individually as two PAS-2400-50's with the addition of one DC to aircraft cable as an option. All units can be used plugged into a 110 power outlets to provide continuous power for hangar or shop applications and to test aircraft systems and are ideal for GPS / FMS updates. The units are all equipped with a 110/220 switchable power supply. Because of the compact size and weight the units are ideal for working at remote locations and can be carried aboard an aircraft should that be a requirement. Features Features:Cooler Starts for Turbine Powered Aircraft Continuous Power for Shop or Ramp Light Weight Portable Significant Power Output for Size and Weight Rapid Recharge Rate Maintenance Free 110 / 220 Volts AC Input Switchable Power Supply -20 to +50ºC Ambient Temperature Operation Range LED Bar Voltmeter Display Power Status Button AC Power on Light Charge Boost Mode Light Charge Float Mode Light Rugged / Light Weight Aluminum
