Part PDLM-105

‹ Parts search

Klixon · 7 listings from 5 suppliers (Aircraft Parts & Salvage, BAS Part Sales, CostAero, SkyGeek, Yingling Aviation) · $30.00 – $357.15. Prices refresh weekly.

from $30
from $40
from $328

Price trend · weekly low by condition

WeekConditionListingsLowAvg
2026-W35used 3$40 $78
2026-W35core 1$30 $30

Description

The KLIXON® PDL series thermal breakers are designed to meet the harshest environmental requirements. The PDL series breakers are weatherproof for protection against moisture, dust, grease, fuel vapors, and other harsh environments. The PDL series of breakers are designed to interrupt short circuits or overloads and combine trip-free protection with fast response time. The PDL series of breakers can be used in commercial and military vehicles and equipment where more precise ultimate trip characteristics are required. Features 30VDC, 105 Amps Sealed assemblies, manual reset Ignition protected & CCC certified PDLM meets CID A-A-55571/04 specifications Specifications Weight (with mounting nuts): 129 grams max Calibration 200% rated current: 77°F (25°C) 8 to 100 seconds Ultimate Trip At 77°F (25°C): Must hold 100%, Must trip 138% Endurance: Automatic: 2,000 cycles @ 200% rated current Manual: 500 cycles @ 200% rated current Interrupt Current Capacity: Per SAE J1625 and ABYC E-11 Vibration: 10G MIL-STD-202 Method 204, Condition A Mechanical Shock: 100G MIL-STD-202 Method 213, Condition C Dielectric Strength: MIL-STD-202 Method 301, 1500VAC min Insulation Resistance: MIL-STD-202 Method 302, Condition B, 100 MΩ min

Price spread · 6 priced listings

$30
$98
$357
median BAS Part Sales · $30 · core PDLM-105 Klixon Breaker (105 Amp) (Cracked Casing) (Core) (click to open at supplier) Aircraft Parts & Salvage · $40 · used AT-802A Klixon 105 Circuit Breaker (PDLM-105) (click to open at supplier) BAS Part Sales · $55 · used PDLM-105 Klixon Circuit Breaker (click to open at supplier) Aircraft Parts & Salvage · $140 · used AT-602 105 Circuit Breaker (PDLM-105) (click to open at supplier) CostAero · $328 PDLM-105 Circuit Breaker | Thermal 105A (click to open at supplier) SkyGeek · $357 KLIXON® PDLM-105 Circuit Breaker - 105 AMP (click to open at supplier) $30 $357

Each dot is one listing (hover for supplier & condition); color = condition.

Price by condition · median

core (1) $30
used (3) $55
unlisted (2) $342
PDLM-105 Klixon Breaker (105 Amp) (Cracked Casing) (Core) BAS Part Sales
PDLM-105 Klixon Breaker (105 Amp) (Cracked Casing) (Core)
Klixon
core
$30.00 view at supplier ↗
AT-802A Klixon 105 Circuit Breaker (PDLM-105) Aircraft Parts & Salvage
AT-802A Klixon 105 Circuit Breaker (PDLM-105)
Removed from 2012 AT-802A S# 801-0478
used
$40.00 view at supplier ↗

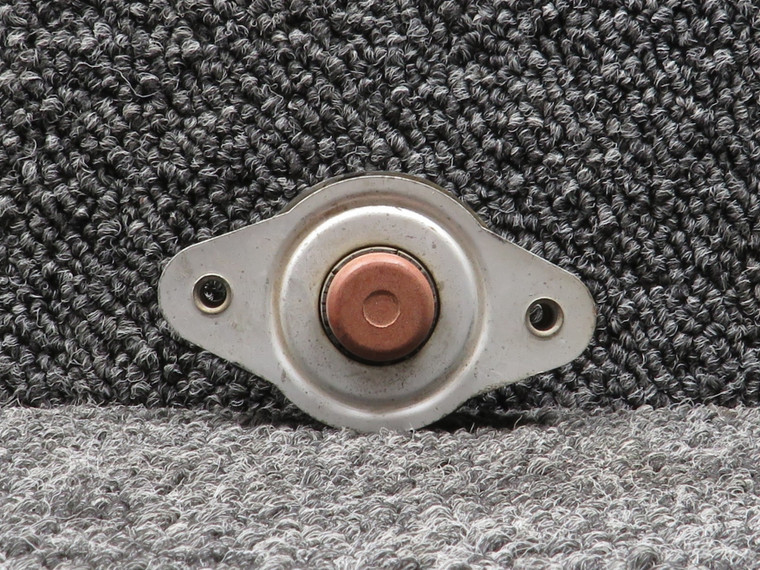

PDLM-105 Klixon Circuit Breaker BAS Part Sales
PDLM-105 Klixon Circuit Breaker
Klixon
used
$55.00 view at supplier ↗
AT-602 105 Circuit Breaker (PDLM-105) Aircraft Parts & Salvage
AT-602 105 Circuit Breaker (PDLM-105)
Removed from 1998 AT-602  S# 602-0488
used
$140.00 view at supplier ↗
PDLM-105 Circuit Breaker | Thermal 105A CostAero
PDLM-105 Circuit Breaker | Thermal 105A
The KLIXON® PDL series thermal breakers are designed to meet the harshest environmental requirements. The PDL series breakers are weatherpro…
$327.75 view at supplier ↗
KLIXON® PDLM-105 Circuit Breaker - 105 AMP SkyGeek
KLIXON® PDLM-105 Circuit Breaker - 105 AMP
Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN 9A991.d Manuf…
$357.15 view at supplier ↗
🔩 Yingling Aviation
PDLM105
BREAKER PRICE ON REQUEST
new
Ask / RFQ view at supplier ↗
