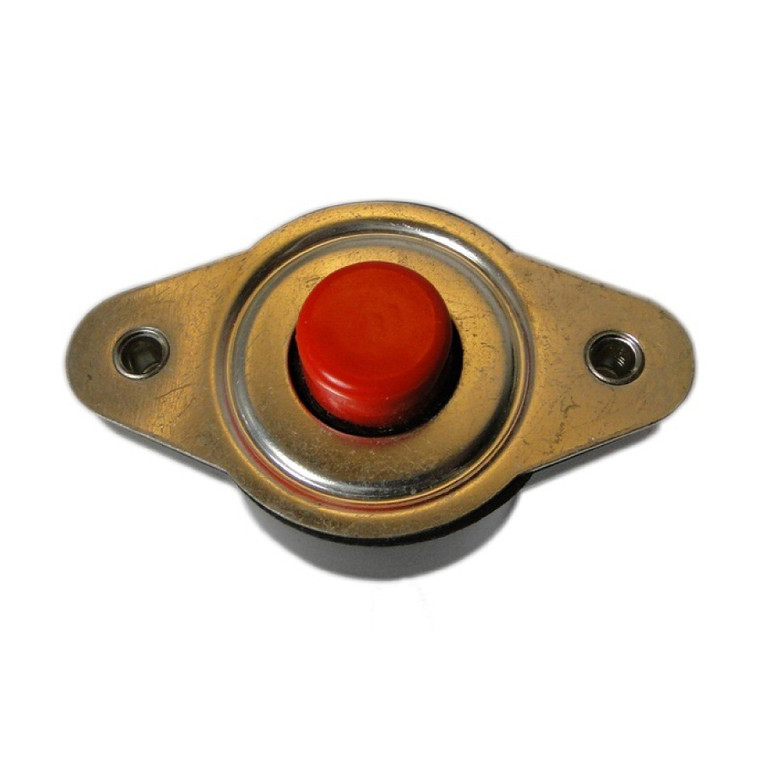

Part PDLM-60
3 listings from 3 suppliers (SkyGeek, Univair, Yingling Aviation) · $292.32 – $401.08. Prices refresh weekly.
Description
Approvals and Conformities NSN 5925-00-227-0396 Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN 9A991.d Manufacturer P/N PDLM-60 Schedule B Code 8536.20.0040 Pack Quantity 1 Body Style: Single Pole Type Overall Length: 3.156 Inches Nominal Body Width: 1.875 Inches Nominal Case Material: Plastic Center To Center Distance Between Terminals Parallel To Length: 1.062 Inches Nominal Distance Between Centerlines Of Mounting Facilities Parallel To Body Length: 2.406 Inches Nominal Mounting Surface To Terminal End Distance: 1.156 Inches Nominal Pole Quantity: 1 Mounting Facility Type And Quantity: 2 Threaded Hole Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 60.0 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 30.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 900.0 Dc Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Thermal Single Location Trip Release Characteristic: Time Delay Single Location Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 125.0 Single Location Reset Method: Manual Main Contact Tripping Mechanism Type: Trip Free Manual Actuator Type And Quantity: 1 Push Button Actuator Function: Reset Actuator Position
