Part S1851501-02

Description

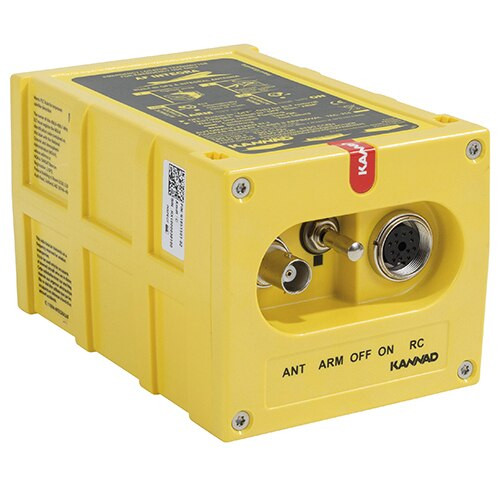

Approvals and Conformities Alternate PN#s 51501-02 Product Attributes Country of Origin France Shipping Weight 3 pounds ECCN 7A994 Color Family Yellow Manufacturer P/N S1851501-02 Schedule B Code 8525.60.2000 Pack Quantity 1 Color Yellow The Integra 406 ELT offers an efficient option installing or retrofitting a 406 MHz ELT with GPS capabilities in an individual or fleet aircraft. The Integra ELT transmits distress signals and location data via a 406 MHz signal to the COSPAS-SARSAT satellite network in conjunction with a homing signal on 121.5 MHz which allows rescuers narrow down the search area to 490 square miles. With the Integra's GPS capabilities, it is possible for the ELT to send exact GPS coordinates of a crash sites location — further narrowing the search area to 0.03 square miles while lowering response times to as little as 30 minutes. Features Automatic fixed, extended temperature range (AF/ER) emergency locator transmitter Integrated internal 406 MHz backup antenna Compact and lightweight Does not require an external power supply Remote control panel offers optional 2-wire or 3-wire installations Universal mounting bracket provides easy retrofitting Operates on 406 MHz and 121.5 MHz frequencies Operating temperature as low as -40C for 24 hours on 406 MHz and over 48 hours on 121.5 MHz Weight: 1.873 lb (850 g), including batteries Dimensions: 6.89 x 3.90 x 3.40 in (175 x 99 x 88.4 mm) Approvals: COSPAS-SARSAT, RTCA DO
