Part SK-2043C
1 listing from 1 supplier (SkyGeek) · $22.21. Prices refresh weekly.
Description

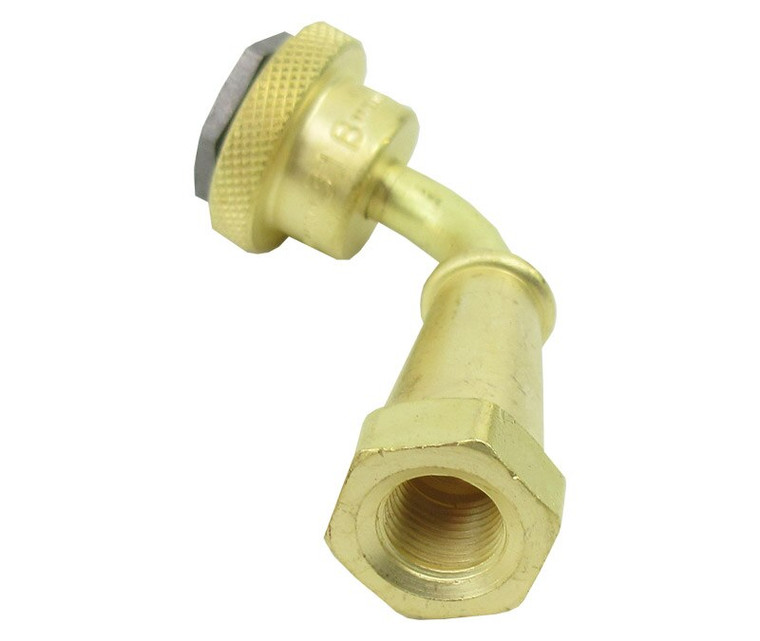

Approvals and Conformities NSN 4730-00-447-1423 Alternate PN#s 8161805, 9167969, A218275, A5750-31, FI, 202821 Product Attributes Country of Origin United States Shipping Weight 0.13 pounds ECCN 9A991.d Color Family Copper Manufacturer P/N SK-2043-C Schedule B Code 7412.20.0000 Pack Quantity 1 Ship Dimensions 1 x 1 x 3 inches Color Copper The Schrader SK-2043C "gooseneck" coupler is used to connect to the inflation valves of most General Aviation Aircraft struts. They are used in conjunction with a strut pump or a nitrogen bottle to deliver the pressurized air needed to inflate a landing gear strut. One end fits directly to the strut and the other has a 1/8" NPT Female thread. Nominal Pipe Size Accommodated: 0.125 Inches 1St End Thread Class: 3B 2Nd End End Item Identification: F/A-18 Hornet, A-6E Intruder, S-3B Viking Aircraft. Low Altitude Navigation & Targeting Infrared System (Lantrin). B-52 Aircraft Support Equipment. Virginia Class Cgn (41). Intercept Guided Missle. Connection Style: Plain (Pipe) 1St End Connection Style: Swivel Nut, Gasket Seal (Hose) 2Nd End Leg Length: 0.980 Inches Minimum 2Nd End And 1.020 Inches Maximum 2Nd End Leg Length: 1.730 Inches Minimum 1St End And 1.770 Inches Maximum 1St End Connection Type: Threaded Internal Hose 2Nd End Connection Type: Threaded Internal Pipe 1St End Nominal Thread Size: 0.125 Inches 1St End Nominal Thread Size: 0.312 Inches 2Nd End Flow Angle: 70.0 Degrees Pressure Ratin
