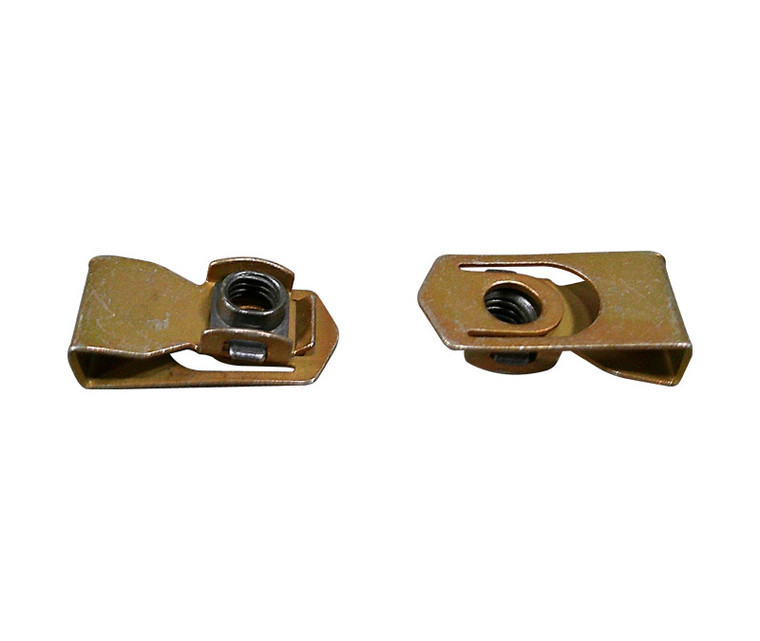

Part SL213-3-1
1 listing from 1 supplier (SkyGeek) · $48.80. Prices refresh weekly.
Description
Approvals and Conformities NSN 5310-00-815-2814 Product Attributes Country of Origin United States Shipping Weight 0.3 pounds ECCN EAR99 Manufacturer P/N SL213-3-1 Schedule B Code 7318.16.0000 Pack Quantity 10 Material Carbon Steel Thread Class: 3B\r\n Thread Direction: Right-Hand\r\n Locking Feature: Prevailing Torque All Metal Design\r\n Lubrication: Dry Film Lubricant\r\n Overall Width: 0.437 Inches Nominal\r\n Nut Style: Floating\r\n Distance From Base To Center Of Aperture: 0.530 Inches Nominal\r\n Panel Thickness: 0.160 Inches Minimum\r\n Temp Rating: 232.0 Deg Celsius Maximum\r\n Thread Series: Unjf\r\n Features Provided: Floating Nut\r\n Thread Quantity Per Inch: 32\r\n Nominal Thread Size: 0.190 Inches\r\n Material: Steel Comp 1050 Overall\r\n Material Document And Classification: Ms 5085 Assn Std Single Material Response Overall\r\n Surface Treatment: Cadmium Overall\r\n Surface Treatment Document And Classification: Qq-P-416,Type Ii,Class 2 Fed Spec Single Treatment Response Overall\r\n
