Part TJ-101
2 listings from 2 suppliers (FlightHelmet.com, SkyGeek) · $32.00 – $41.34. Prices refresh weekly.
Price trend · weekly low by condition
| Week | Condition | Listings | Low | Avg |
|---|---|---|---|---|
| 2026-W35 | used | 1 | $32 | $32 |
| 2026-W35 | new | 1 | $41 | $41 |
Description

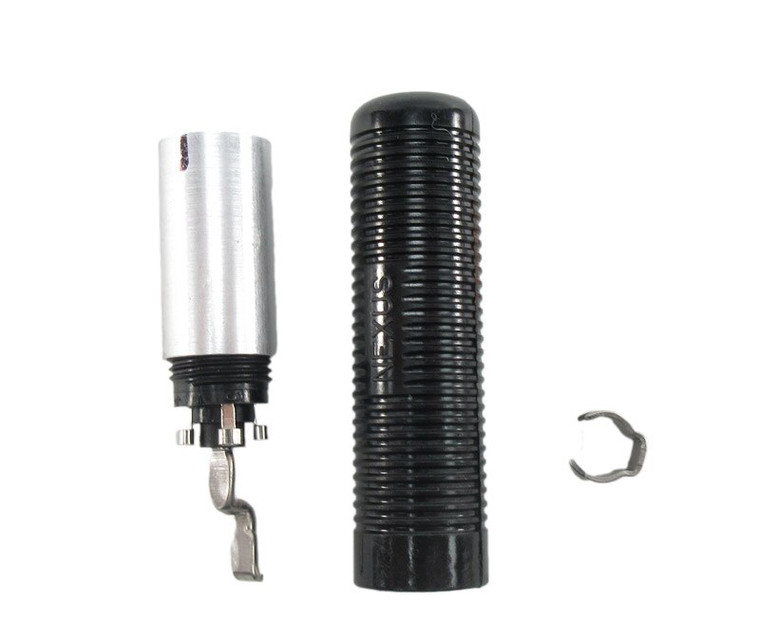

Approvals and Conformities NSN 5935-01-065-7976 Alternate PN#s JB-11F4, 11-00702 Product Attributes Country of Origin United States Shipping Weight 0.01 pounds ECCN EAR99 Color Family Black Manufacturer P/N TJ-101 Schedule B Code 8517.70.0000 Pack Quantity 1 Color Black Material Plastic This Jack Mates with Nexus Telephone Plug TP-101 with a Max Insertion Force of 10 Lbs & Withdrawl force of 6 Lbs Min to 10 Lbs Max The Strain Relief Clamp is Intended for use with Cables Approx .275 Outside Dia. The Solder Terminals each will accept two Stranded Conductors ff 404 Circular Mils (24 Gage, 41 Strands Of 40 Awg) Each conductor is of one piece construction. There are no joints of any type between the contact area & the Solder Terminal. The stay cord anchor will withstand a 50 Lb pull for at least 5 Min. Materials: Contacts-Breyllium Copper per Federal Spec QQ-C-533. Finish Nickel plater per Federal Spec QQ-N-290, Class 2, Type 6. Body Insulation Strain Relief Clamp; Stainless Steel per Federal Spec QQ-5-766, Class 4 Shell: Glass Filled Nylon, Black Electrical: Dielectric Strength: 500 Volts Rms Min between any pair of Contacts. Insulation Resistance: 100 Megaohms Min between any pair of Contacts. Contact Resistance: When Mated with Nexus TP-101 Telephone Plug and with a direct current of 100 Milliamperes at 5 Volts (Open Circuit Voltage)flowing through the Contacts, the Potential drop between each pair of contacts will not exceed .005
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
