Part W23X1A1G-10

Description

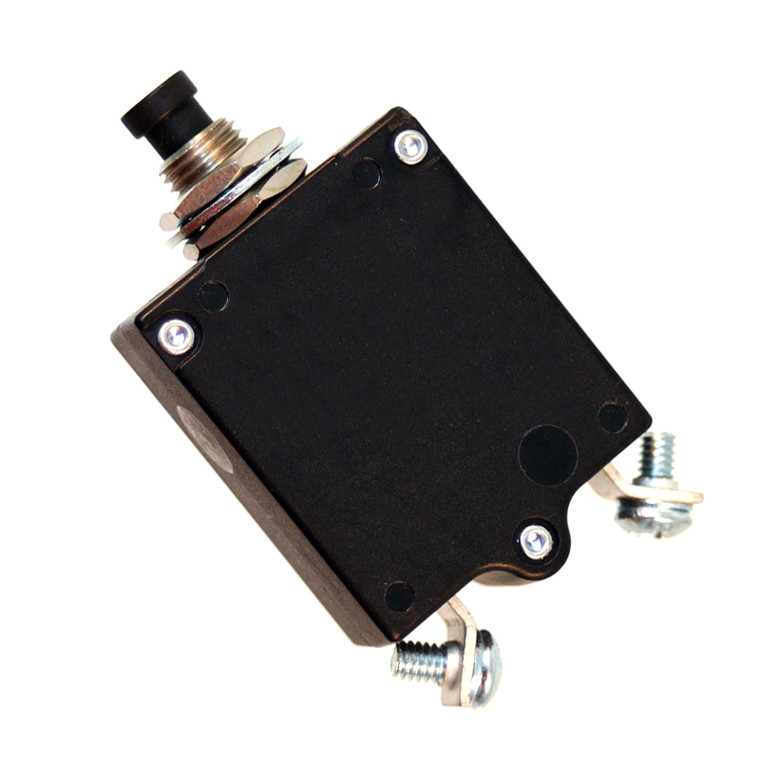

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.35 pounds ECCN EAR99 Manufacturer P/N W23X1A1G10 Schedule B Code 8536.20.0040 Pack Quantity 1 The Tyco Elcon W23X1A1G10 Circuit Breaker is a Potter and Brumfield Thermal Circuit Breaker with a push/pull actuator and wire termination with 8-32 screws at a 90° angle. It carries a 10A current and 50 VDC, 250 VAC operating voltage. Has an interrupt capacity of 2000 A for 50 VDC and 1000 A for 240 VAC. Trips at 200% overload within 6 to 22 seconds. Features Product Type Features: Product Type: Circuit Breaker Series: W23 Actuator Style: Push/Pull Button Color: Black with White Amp Rate Marking and White Trip Band Termination Type: 8-32 Screws 90° to Each Other (Screws and Washers Installed) Electrical Characteristics: Current Rating (A): 10 Operating Voltage, Max.: 50 VDC, 250 VAC Contact Features: Number of Poles: 1 Trip Time at 200%: 6 to 22 Seconds Interrupt Capacity: 2,000 A @ 50 VDC or 1,000 A @ 240 VAC Mounting Options: Two Hex Nuts/Lockwasher Mounting Bushing: 3/8"-24 Threaded Bushing .375" [9.53 mm] Long, Silver Color Configuration Features: Circuit Function: Series Trip Industry Standards: RoHS/ELV Compliance: RoHS/Not ELV Compliant Lead Free Solder Processes: Not relevant for lead free process RoHS/ELV Compliance History: Converted to comply with RoHS not ELV directives Approved Standards: UL Recognized, CSA Certified Other: Brand: Potte
