KMDH Southern Illinois Airport
· 3 miles NW of central business district of the associated city
Public
Towered
Publicly-owned
ICAO KMDH
Location & operations
- Elevation
- 411.2 ft
- Coordinates
- 37-46-41.1000N 089-15-07.3000W
- Lat / Long
- 37.7780833, -89.2520278
- Mag. variation
- 01W (2010)
- Time zone
- UTC -5 (UTC -6 during Standard Time)
- Activated
- 09/1950
- ARTCC
- KANSAS CITY CENTER
- FSS
- SAINT LOUIS FLIGHT SERVICE STATION
- NOTAMs facility
- MDH (NOTAM-D service available)
- Attendance
- CONTINUOUS
- Wind indicator
- lighted
- Segmented circle
- yes
- Beacon
- white-green (lighted land airport) Operates sunset to sunrise.
- Lights
- ACTVT MALSR RWY 18L; VASI RWY 06; PAPI RWY 24 & 36R; MIRL RWY 06/24; HIRL RWY 18L/36R - CTAF. WHEN ATCT CLSD HIRL RWY 18L/36R PRESET MED INTST; INCREASE INTST - CTAF. WHEN ATCT CLSD 18R/36L LTG BY REQ

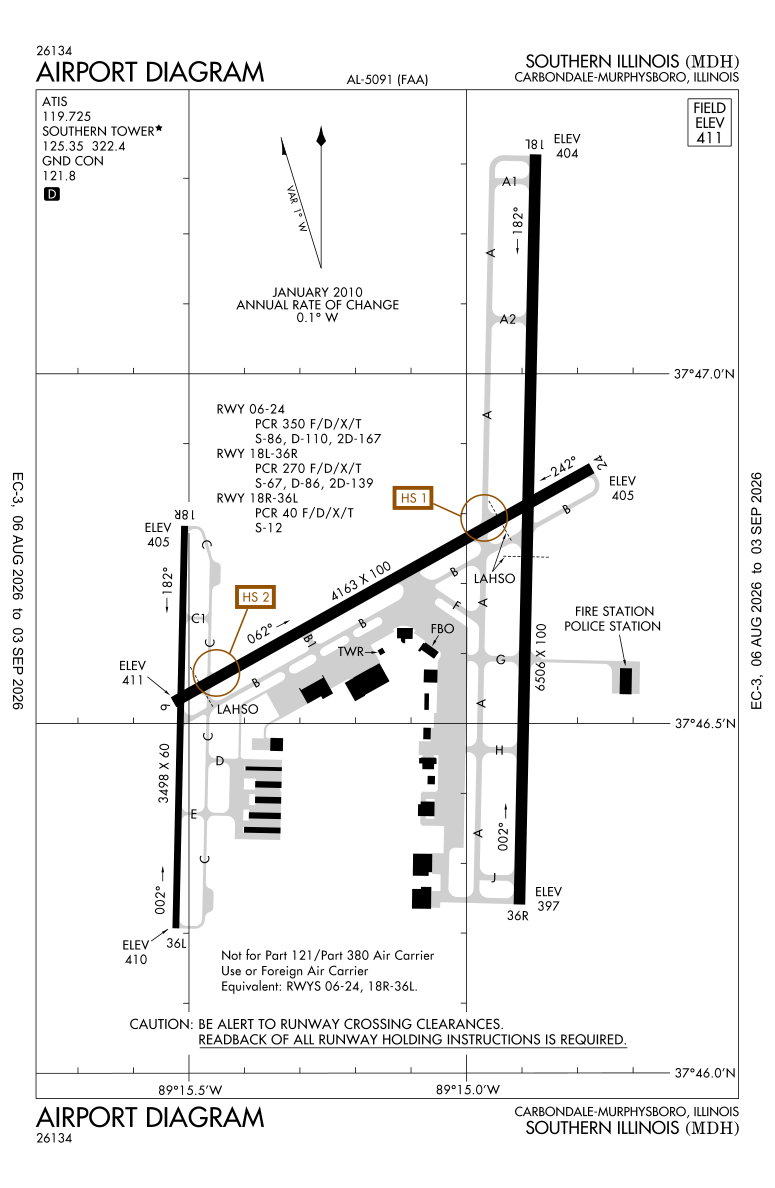

Airport diagram FAA official
Range from KMDH
Runways
Longest 6506 ft
Tap a runway to see its details.
- Dimensions
- 6506 x 100 ft. / 1983 x 30 m
- Surface
- asphalt/grooved, in excellent condition
- Edge lights
- high intensity
Runway 18L
- Heading
- 182 magnetic, 181 true
- VGSI / PAPI
- 4-light PAPI on left (3.00 degrees glide path)
- Instrument approach
- ILS
- Approach lights
- MALSR: 1,400 foot medium intensity approach lighting system with runway alignment indicator lights
- Declared distances
- TORA:6506 TODA:6506 ASDA:6506 LDA:6506
- Markings
- precision, in good condition
- Touchdown point
- yes, no lights
- REIL
- yes
- Traffic pattern
- left
- Threshold elevation
- 404.1 ft.
Runway 36R
- Heading
- 002 magnetic, 001 true
- Declared distances
- TORA:6506 TODA:6506 ASDA:6506 LDA:6506
- Markings
- nonprecision, in good condition
- Touchdown point
- yes, no lights
- Traffic pattern
- left
- Threshold elevation
- 397.2 ft.
- Dimensions
- 4163 x 100 ft. / 1269 x 30 m
- Surface
- asphalt/porous friction courses, in fair condition
- Edge lights
- medium intensity Operational restrictions
- Weight bearing
- Single wheel 86.0, RSTRD TO ACFT 12500 LBS OR LESS UNLESS PPR WITH ATCT.
Runway 6
- Heading
- 062 magnetic, 061 true
- VGSI / PAPI
- 4-box VASI on left (3.50 degrees glide path)
- Declared distances
- TORA:4163 TODA:4163 ASDA:4163 LDA:4163
- Markings
- basic, in good condition
- Touchdown point
- yes, no lights
- REIL
- yes
- Traffic pattern
- left
- Threshold elevation
- 410.9 ft.
Runway 24
- Heading
- 242 magnetic, 241 true
- VGSI / PAPI
- 4-light PAPI on right (3.50 degrees glide path)
- Declared distances
- TORA:4163 TODA:4163 ASDA:4163 LDA:4163
- Markings
- basic, in good condition
- Touchdown point
- yes, no lights
- REIL
- no
- Traffic pattern
- left
- Threshold elevation
- 405.0 ft.
- Dimensions
- 3498 x 60 ft. / 1066 x 18 m
- Surface
- asphalt, in excellent condition
- Edge lights
- medium intensity Operational restrictions
Runway 18R
- Heading
- 182 magnetic, 181 true
- VGSI / PAPI
- pulsating/steady burning VASI on left (3.00 degrees glide path)
- Declared distances
- TORA:3498 TODA:3498 ASDA:3498 LDA:3498
- Markings
- basic, in good condition
- Touchdown point
- yes, no lights
- Traffic pattern
- left
- Threshold elevation
- 404.8 ft.
Runway 36L
- Heading
- 002 magnetic, 001 true
- VGSI / PAPI
- UNUSBL BYD 6 DEG RIGHT OF COURSE. PVASI OTS INDEF.
- Declared distances
- TORA:3498 TODA:3498 ASDA:3498 LDA:3498
- Markings
- basic, in good condition
- Touchdown point
- yes, no lights
- Traffic pattern
- left
- Threshold elevation
- 409.9 ft.
Terminal procedures FAA d-TPP · cycle 2608 · through 0901Z 09/03/26
Departures — DP / ODP 2
Approaches — IAP 3
Arrivals — STAR 0
None published.
Other charts 2
Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.
Communications
- Control Tower
- yes
- Ctaf
- 125.35
- Unicom
- 122.95
- Atis
- 119.725
- Wx Asos
- PHONE 618-529-1821
- Southern Ground
- 121.8 [0700-2100]
- Southern Tower
- 125.35 322.4 126.25 [0700-2100]
- Approach Lights
- MALSR: 1,400 foot medium intensity approach lighting system with runway alignment indicator lights
- Instrument Approach
- ILS
Services
- Fuel
- 100LL JET-A
- Fuel available
- 100LL JET-A
- Parking
- hangars and tiedowns
- Airframe service
- MAJOR
- Powerplant service
- MAJOR
- Bottled oxygen
- NONE
- Bulk oxygen
- NONE
Ownership
- Manager
- ALYSSA CONNELL P O BOX 1086 CARBONDALE, IL 62903 Phone 618-529-1721
- Manager phone
- 618-529-1721
Airport data aggregated from public FAA/AirNav sources for reference only — always consult official charts and NOTAMs for flight planning.
