Part CI105-9

Description

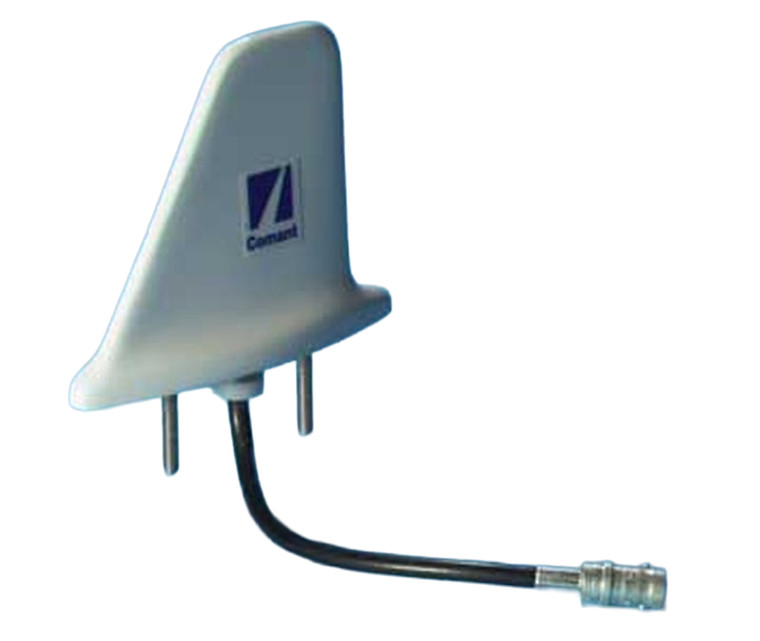

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.38 pounds ECCN 7A994 Manufacturer P/N CI105-9 Schedule B Code 9803.20.0000 Pack Quantity 1 Broadband and rugged antenna designed for DME or transponder use. Antenna assembly encased in a glass reinforced polyester molded shell. CI 105-9 comes standard with a 6" extension coax cable and BNC connector. This model offers standard two stud mounting, where the studs are extended to 1 inch in length. MODEL CI 105-9 DME / Transponder Electrical Frequency 960 to 1220 MHz 1030 to 1090 MHz VSWR 1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz Polarization Vertical Radiation Pattern Equivalent of ? / 4 Stub Impedance RF 50 Ohms Resistance DC Open Circuit Power RF 2.5 KW Peak Mechanical Weight 0.24 lb. Height 3.23 in. Material Molded Radome Finish Polyurethane Enamel Connector BNC (female) on 6 in. coax cable Environmental Temperature -54ºC to +55ºC Altitude 70,000 ft. Air Speed 400 Knots TAS at 25,000 ft. Federal Specifications RTCA Environmental DO-160C Environmental Category E1-BCLYXRHXXXXXXXXXXXXXX FAA TSO C66b, C74c RTCA MOPS DO-144 DO-189 ORDER OPTIONS Connector BNC With integral 6 inch coax cable Color White Standard Gasket B10505
