KMKC Kansas City Downtown Airport-Wheeler Field
Public
Towered
Publicly-owned
ICAO KMKC
Location & operations
- Elevation
- 756.9 ft
- Coordinates
- 39-07-22.5660N 094-35-34.1640W
- Lat / Long
- 39.122935, -94.5928233
- Mag. variation
- 01E (2020)
- Time zone
- UTC -5 (UTC -6 during Standard Time)
- Activated
- 04/1940
- ARTCC
- KANSAS CITY CENTER
- FSS
- COLUMBIA FLIGHT SERVICE STATION
- NOTAMs facility
- MKC (NOTAM-D service available)
- Attendance
- CONTINUOUS
- Wind indicator
- lighted
- Segmented circle
- no
- Beacon
- white-green (lighted land airport) Operates sunset to sunrise.
- Lights
- SS-SR
- International operations
- customs landing rights airport

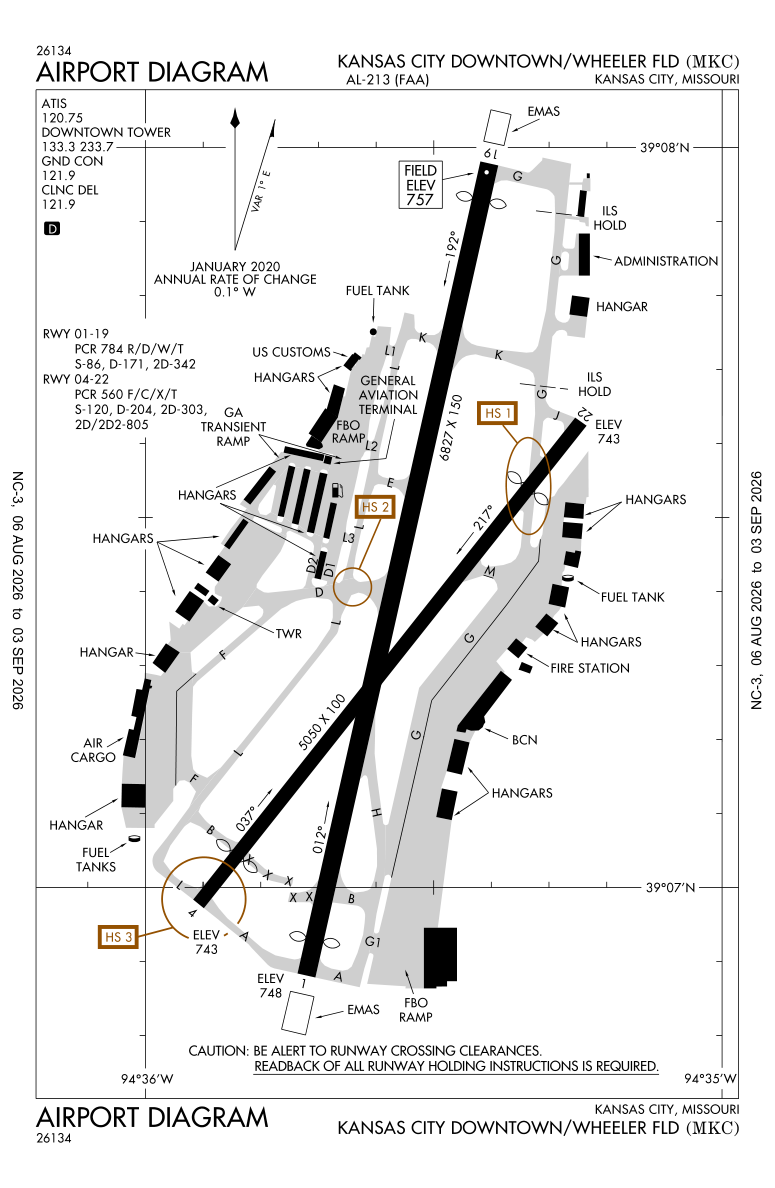

Airport diagram FAA official
Range from KMKC
Runways
Longest 6827 ft
Tap a runway to see its details.
- Dimensions
- 6827 x 150 ft. / 2081 x 46 m
- Surface
- concrete/grooved, in excellent condition
- Edge lights
- high intensity
- Weight bearing
- Single wheel 86.0
Runway 1
- Heading
- 012 magnetic, 013 true
- VGSI / PAPI
- 4-box VASI on left (3.70 degrees glide path)
- Instrument approach
- ILS/DME
- Approach lights
- RLLS
- Declared distances
- TORA:6827 TODA:6827 ASDA:6827 LDA:6528
- Markings
- nonprecision, in good condition
- Displaced threshold
- 299 ft.
- Touchdown point
- yes, no lights
- REIL
- yes
- Traffic pattern
- left
- Threshold elevation
- 748.4 ft.
- Obstructions
- 38 ft. tree, 747 ft. from runway, 571 ft. right of centerline, 20:1 slope to clear
Runway 19
- Heading
- 192 magnetic, 193 true
- VGSI / PAPI
- 4-light PAPI on left (3.00 degrees glide path)
- Approach lights
- MALSF: 1,400 foot medium intensity approach lighting system with sequenced flashers
- Declared distances
- TORA:6827 TODA:6827 ASDA:6827 LDA:6526
- Markings
- precision, in good condition
- Displaced threshold
- 301 ft.
- Touchdown point
- yes, no lights
- REIL
- no
- Traffic pattern
- left
- Threshold elevation
- 756.9 ft.
- Obstructions
- 20 ft. road, 700 ft. from runway, 150 ft. left of centerline, 25:1 slope to clear
- Dimensions
- 5050 x 100 ft. / 1539 x 30 m
- Surface
- asphalt/grooved, in excellent condition
- Edge lights
- high intensity
- Weight bearing
- Single wheel 120.0
Runway 4
- Heading
- 037 magnetic, 038 true
- VGSI / PAPI
- 4-box VASI on left (3.00 degrees glide path)
- Instrument approach
- ILS/DME
- Declared distances
- TORA:5050 TODA:5050 ASDA:4770 LDA:4270
- Markings
- precision, in good condition
- Displaced threshold
- 500 ft.
- Touchdown point
- yes, no lights
- REIL
- yes
- Traffic pattern
- left
- Threshold elevation
- 742.7 ft.
- Obstructions
- 20 ft. berm, lighted, 450 ft. from runway, 125 ft. left of centerline, 12:1 slope to clear
Runway 22
- Heading
- 217 magnetic, 218 true
- VGSI / PAPI
- 4-box VASI on left (3.30 degrees glide path)
- Declared distances
- TORA:5050 TODA:5050 ASDA:5050 LDA:4351
- Markings
- nonprecision, in good condition
- Displaced threshold
- 699 ft.
- Touchdown point
- yes, no lights
- Traffic pattern
- left
- Threshold elevation
- 743.2 ft.
- Obstructions
- APCH RATIO AT DSPLCD THR 47:1.
Terminal procedures FAA d-TPP · cycle 2608 · through 0901Z 09/03/26
Departures — DP / ODP 8
Approaches — IAP 7
Arrivals — STAR 5
Other charts 1
Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.
Communications
- Control Tower
- yes
- Unicom
- 122.95
- Atis
- 120.75
- Wx Asos
- 120.75 (816-329-2843)
- Downtown Ground
- 121.9
- Downtown Tower
- 133.3 233.7
- Kansas City Approach
- 118.4
- Kansas City Departure
- 118.4
- Clearance Delivery
- 121.9
- Pre-Taxi Clearance
- 121.9
- Approach Lights
- RLLS
Services
- Fuel available
- 100LL JET-A 100LL:100LL SELF SVC AVBL 24 HRS WITH CREDIT CARD ONLY ON WEST SIDE NEAR GA TERMINAL.
- Parking
- hangars and tiedowns
- Airframe service
- MAJOR
- Powerplant service
- MAJOR
- Bottled oxygen
- HIGH/LOW
- Bulk oxygen
- HIGH/LOW
Airport data aggregated from public FAA/AirNav sources for reference only — always consult official charts and NOTAMs for flight planning.
