Part 02450-00
1 listing from 1 supplier (CostAero) · $110.00. Prices refresh weekly.
Description

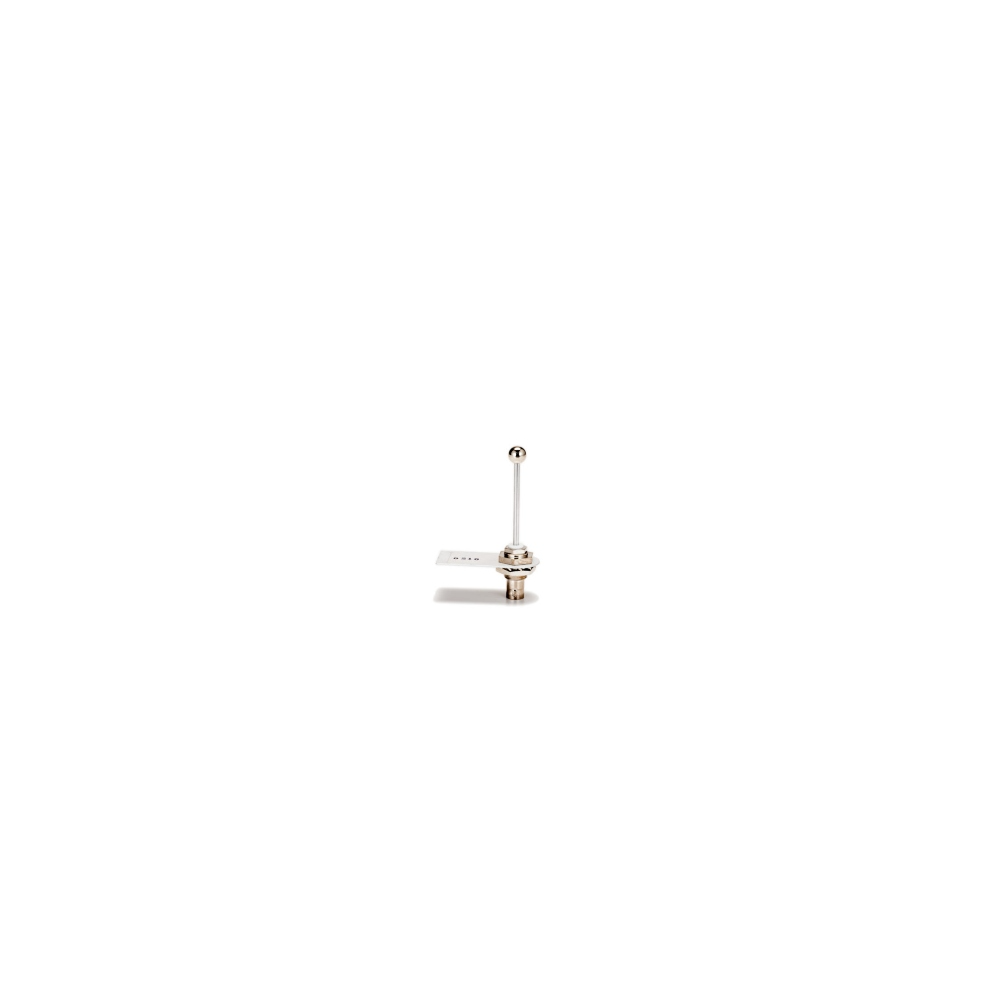

TA12 TRANSPONDER ANTENNA The TA12 is a fully certified and highly compact ‘rod and ball’ style transponder antenna. The TA12 is an ideal match for a Trig transponder, particularly in applications where a small and discreet transponder antenna is needed in light aviation, GA and high performance types. The TA12 is simple to install, requiring a small hole in the aircraft surface. An installation guide, install kit and FAA 8130 certification/approval is included. Make your Trig transponder installation complete by adding a TA12. Features: High-quality product – proven with Trig transponders Suitable for most GA types, including high performance aircraft (up to 350 mph / 50,000 feet) Certified to FAA TSO C74c Discreet and very lightweight Complete with installation kit Specifications: Product Model Type Frequency Impedance VSWR Polarization Pattern Connector RF power Weight TA12 Transponder Antenna – ‘rod and ball’ type 1030 – 1090 MHz 50 Ohms nominal 1.3:1 maximum Vertical Omni-Directional BNC female 1.0kW peak @ 1% duty cycle 28g / 1oz Version: The TA12 Antenna is suitable for use world-wide and comes in a single version. WHAT'S IN THE BOX The TA12 ships with an installation kit, installation guide and an FAA 8130 certification / approval
