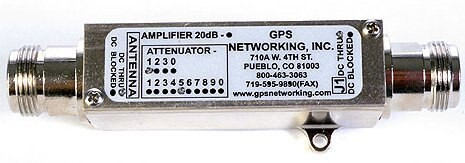

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.7 pounds ECCN 7B994 Manufacturer P/N XXATTENPDC Schedule B Code 8526.91.0070 Pack Quantity 1 The XXATTENDCB GPS RF Attenuator is a one input, one output device with a constant attenuation anywhere in the range from 1dB to 20dB, as specified by the customer. The device is available in a miniaturized housing. The frequency response covers the GPS L1/L2 and GLONASS bands with excellent flatness. In the DC Blocked configuration, the RF output (J1) blocks DC from the connected GPS receiver through the attenuator to the antenna.FeaturesA Range of Fixed Attenuation Values Available 1dB ?? ATTEN < 20dBSmall Form Factor 2.5 (not including connectors) x 0.75 x 0.875 in.Block DC Antenna VoltageDimensions: Height: 0.875"Length (not including connectors) Body: 2.5"Width: 0.75" (+0.438" including mounting tabs)Weight: 3.13 oz. (88.7 grams)Operating Temp. Range: -40o to + 75oC Customer Specified Attenuation 1.0 dB ‰¥ Atten. ‰¤ 20.0 dB (1 dB Increments) Block DC Block DC Input (Antenna), Pass D J1 Connector Options Connector StyleType NType TNCType BNCType SMA Parameter Conditions Min. Typ. Max. Units Frequency Range Ant - J1 1.1 1.7 Ghz In/Out Impedance Ant J1 50 Ohms Attenuation Ant-J1, Specified by the Customer 1 20 dB Input SWR J1- 50 ohms 1.8:1 - Output SWR Ant-50 ohms 1.8:1 - Gain Flatness |L1-L2|, Ant-J1 0.5 dB Group delay Flatness Td,max - Td,min: Ant-J1 1 ns
