KAGC Allegheny County Airport
Pittsburgh, PA · 4 miles SE of PITTSBURGH, PA
Public
Towered
Publicly-owned
ICAO KAGC
Location & operations
- Elevation
- 1251.5 ft
- Coordinates
- 40-21-15.9755N 079-55-44.5680W
- Lat / Long
- 40.3544376, -79.9290467
- Mag. variation
- 09W (2000)
- Time zone
- UTC -4 (UTC -5 during Standard Time)
- Activated
- 11/1937
- ARTCC
- CLEVELAND CENTER
- FSS
- ALTOONA FLIGHT SERVICE STATION
- NOTAMs facility
- AGC (NOTAM-D service available)
- Attendance
- CONTINUOUS
- Wind indicator
- lighted
- Segmented circle
- no
- Beacon
- white-green (lighted land airport) Operates sunset to sunrise.
- Lights
- ATC-CTL.

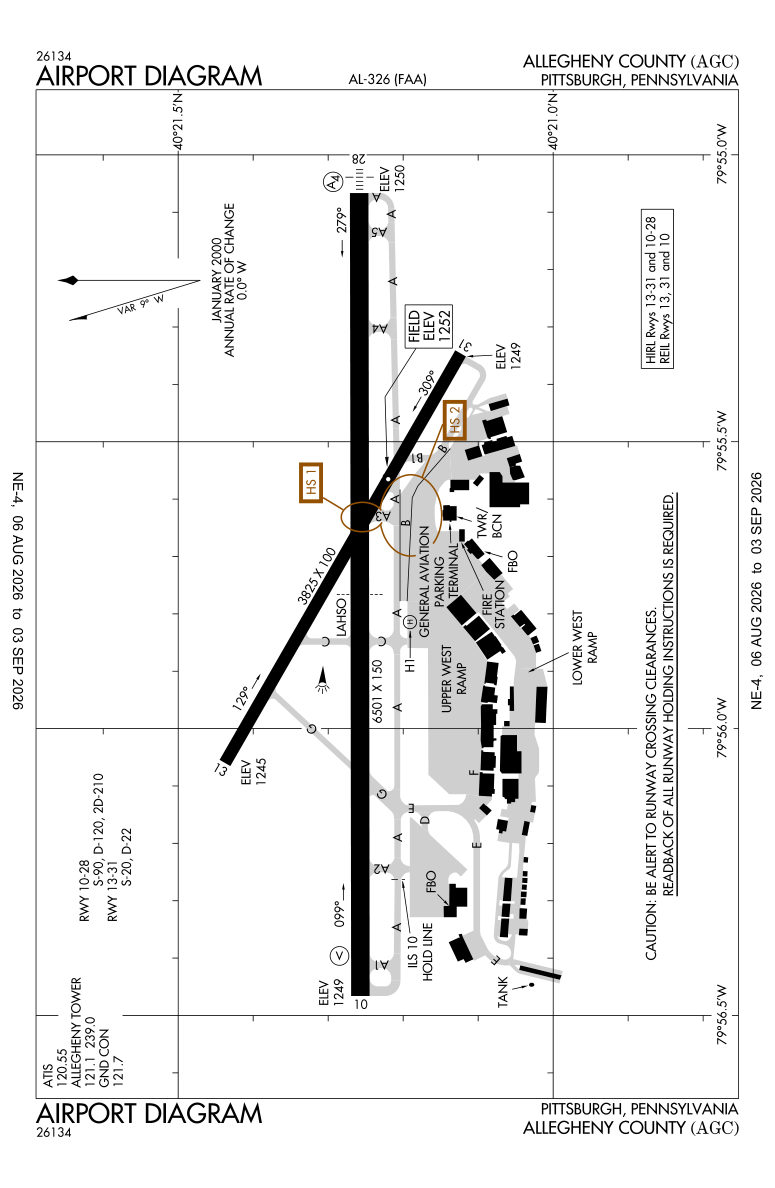

Airport diagram FAA official
Range from KAGC
Runways
Longest 6,501 ft
Tap a runway to see its details.
- Dimensions
- 6501 x 150 ft. / 1982 x 46 m
- Surface
- concrete/grooved, in good condition
- Edge lights
- high intensity
- Weight bearing
- Single wheel 90.0
Runway 10
- Heading
- 099 magnetic, 090 true
- VGSI / PAPI
- 4-box VASI on left (3.00 degrees glide path)
- Instrument approach
- ILS
- Approach lights
- MALS: 1,400 foot medium intensity approach lighting system
- Markings
- precision, in good condition
- Touchdown point
- yes, no lights
- REIL
- yes
- Traffic pattern
- left
- Threshold elevation
- 1249.4 ft.
- Obstructions
- none
Runway 28
- Heading
- 279 magnetic, 270 true
- VGSI / PAPI
- RVR equipment
- Instrument approach
- ILS
- Markings
- precision, in good condition
- Touchdown point
- yes, no lights
- Traffic pattern
- left
- Threshold elevation
- 1250.0 ft.
- Obstructions
- 64 ft. trees, 2613 ft. from runway, 433 ft. left of centerline, 37:1 slope to clear
- Dimensions
- 47 x 45 ft. / 14 x 14 m
- Surface
- concrete, in good condition Operational restrictions
- Edge lights
- high intensity
- Weight bearing
- Single wheel 20.0
Runway 13
- Heading
- 129 magnetic, 120 true
- Markings
- basic, in good condition
- Touchdown point
- yes, no lights
- REIL
- yes
- Traffic pattern
- left
- Threshold elevation
- 1255.0 ft.
- Obstructions
- none
Runway 31
- Heading
- 309 magnetic, 300 true
- Markings
- basic, in good condition
- Touchdown point
- yes, no lights
- REIL
- yes
- Traffic pattern
- left
- Threshold elevation
- 1248.6 ft.
- Obstructions
- 11 ft. trees, 314 ft. from runway, 119 ft. right of centerline, 10:1 slope to clear
Terminal procedures FAA d-TPP · cycle 2608 · through 0901Z 09/03/26
Departures — DP / ODP 3
Approaches — IAP 4
Arrivals — STAR 0
None published.
Other charts 2
Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.
Communications
- Control Tower
- yes
- Unicom
- 122.95
- Atis
- 120.55
- Wx Asos
- 120.55 (412-466-8968)
- Allegheny Ground
- 121.7
- Allegheny Tower
- 121.1 239.0
- Pittsburgh Approach
- 119.35
- Pittsburgh Departure
- 119.35
- Instrument Approach
- ILS
Services
- Fuel
- 100LL JET-A JET-A+ A+:JET A ANTI-ICE AVBL ON REQ.
- Fuel available
- 100LL JET-A JET-A+ A+:JET A ANTI-ICE AVBL ON REQ.
- Parking
- hangars and tiedowns
- Airframe service
- MAJOR
- Powerplant service
- MAJOR
- Bottled oxygen
- HIGH/LOW
- Bulk oxygen
- HIGH/LOW
