KARB Ann Arbor Municipal Airport

Ann Arbor, MI · 3 miles S of ANN ARBOR, MI

Public Towered Publicly-owned ICAO KARB

Location & operations

Elevation: 839.0 ft
Coordinates: 42-13-22.5392N 083-44-44.5518W
Lat / Long: 42.2229276, -83.7457088
Mag. variation: 05W (1985)
Time zone: UTC -4 (UTC -5 during Standard Time)
Activated: 04/1940
ARTCC: CLEVELAND CENTER
FSS: LANSING FLIGHT SERVICE STATION
NOTAMs facility: ARB (NOTAM-D service available)
Attendance: APR-OCT 0800-2000, NOV-MAR 0800-1800 TRML OPEN 0700-DUSK.
Wind indicator: lighted
Segmented circle: yes
Beacon: white-green (lighted land airport) Operates sunset to sunrise.
Lights: WHEN ATCT CLSD ACTVT REIL RWY 06; PAPI RWY 06; VASI RWY 24; MIRL RWY 06/24 - CTAF.

To (optional)

Longest 3,505 ft

Tap a runway to see its details.

Heading: 240 magnetic, 235 true
VGSI / PAPI: 2-box VASI on left (3.00 degrees glide path)
Markings: nonprecision, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 826.0 ft.
Obstructions: 74 ft. tree, 1090 ft. from runway, 389 ft. right of centerline, 12:1 slope to clear

Heading: 307 magnetic, 302 true
Touchdown point: yes, no lights
REIL: no
Traffic pattern: left
Threshold elevation: 822.0 ft.
Obstructions: 83 ft. tree, 1241 ft. from runway, 255 ft. right of centerline, 14:1 slope to clear

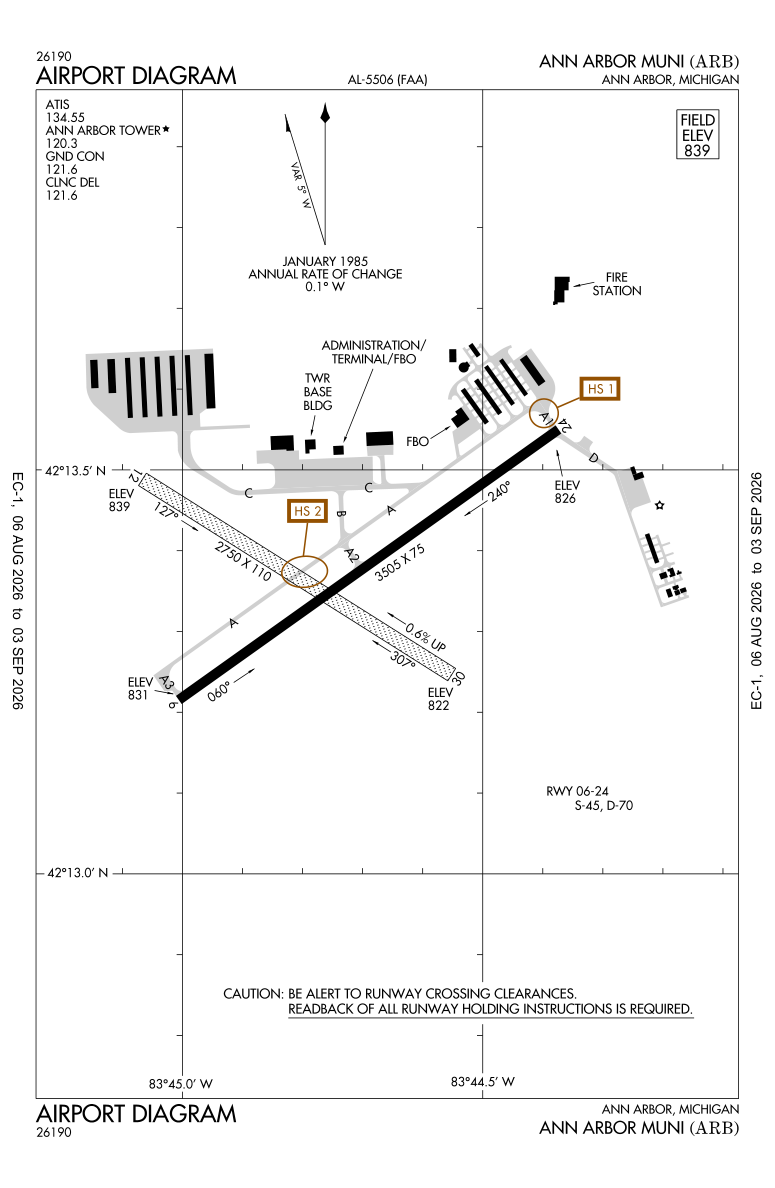

Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.

Airport data aggregated from public FAA/AirNav sources for reference only — always consult official charts and NOTAMs for flight planning.
