KGKY Arlington Municipal Airport
Arlington, TX · 4 miles S of ARLINGTON, TX
Public
Towered
Publicly-owned
ICAO KGKY
Location & operations
- Elevation
- 628.3 ft
- Coordinates
- 32-39-49.9360N 097-05-39.4100W
- Lat / Long
- 32.6638711, -97.0942806
- Mag. variation
- 06E (2000)
- Time zone
- UTC -5 (UTC -6 during Standard Time)
- Activated
- 05/1971
- ARTCC
- FORT WORTH CENTER
- FSS
- FORT WORTH FLIGHT SERVICE STATION
- NOTAMs facility
- GKY (NOTAM-D service available)
- Attendance
- CONTINUOUS
- Wind indicator
- lighted
- Segmented circle
- yes
- Beacon
- white-green (lighted land airport) Operates sunset to sunrise.
- Lights
- MIRL RWY 16/34 PRESET MED INTST; HIGHER INTST BY ATCT REQ. WHEN ATCT CLSD ACTVT MALSR RWY 34 - CTAF.

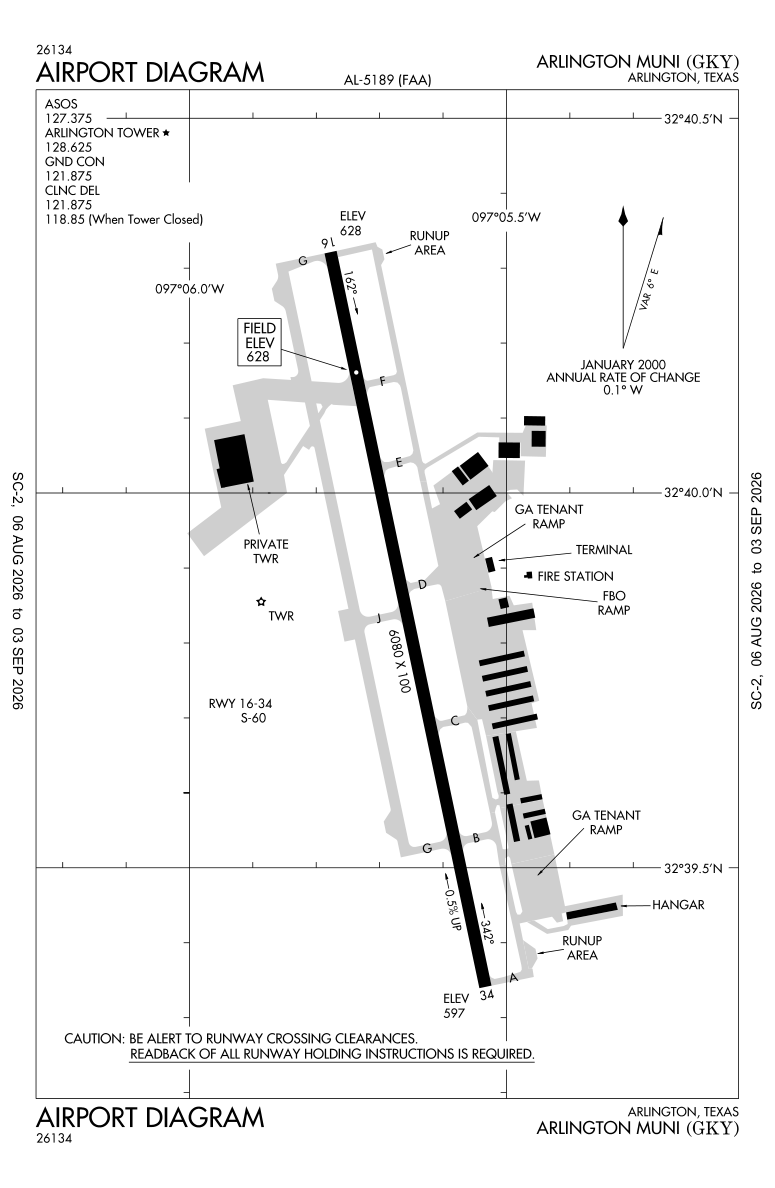

Airport diagram FAA official
Range from KGKY
Runways
Longest 6080 ft
Tap a runway to see its details.
- Dimensions
- 6080 x 100 ft. / 1853 x 30 m
- Surface
- concrete, in good condition
- Edge lights
- medium intensity
- Weight bearing
- Single wheel 60.0
Runway 16
- Heading
- 162 magnetic, 168 true
- VGSI / PAPI
- 4-light PAPI on left (3.00 degrees glide path)
- Instrument approach
- ILS/DME
- Approach lights
- MALSR: 1,400 foot medium intensity approach lighting system with runway alignment indicator lights
- Markings
- nonprecision, in good condition
- Touchdown point
- yes, no lights
- REIL
- yes
- Traffic pattern
- left
- Threshold elevation
- 628.2 ft.
- Obstructions
- none
Runway 34
- Heading
- 342 magnetic, 348 true
- VGSI / PAPI
- 4-light PAPI on left (3.00 degrees glide path)
- Markings
- precision, in good condition
- Touchdown point
- yes, no lights
- REIL
- no
- Traffic pattern
- left
- Threshold elevation
- 596.9 ft.
- Obstructions
- 36 ft. trees, 1235 ft. from runway, 188 ft. left of centerline, 28:1 slope to clear
Terminal procedures FAA d-TPP · cycle 2608 · through 0901Z 09/03/26
Departures — DP / ODP 20
- BOTCH TWO (RNAV) ↗
- BOTCH TWO (RNAV), CONT.1 ↗
- DALLAS FOUR ↗
- DALLAS FOUR, CONT.1 ↗
- GARLAND SIX ↗
- GARLAND SIX, CONT.1 ↗
- JOE POOL EIGHT ↗
- JOE POOL EIGHT, CONT.1 ↗
- KINGDOM FIVE ↗
- KINGDOM FIVE, CONT.1 ↗
- KUSSO THREE (RNAV) ↗
- KUSSO THREE (RNAV), CONT.1 ↗
- NANDR FOUR (RNAV) ↗
- NANDR FOUR (RNAV), CONT.1 ↗
- TEXOMA FIVE ↗
- TEXOMA FIVE, CONT.1 ↗
- WORTH ONE ↗
- WORTH ONE, CONT.1 ↗
- TAKEOFF MINIMUMS ↗
- ALTERNATE MINIMUMS ↗
Approaches — IAP 3
Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.
Communications
- Control Tower
- yes
- Ctaf
- 128.625
- Wx Asos
- 127.375 (817-557-0251)
- Arlington Ground
- 121.875 [0700-2100]
- Arlington Tower
- 128.625 [0700-2100]
- Lone Star Approach
- 135.975
- Lone Star Departure
- 135.975
- Clearance Delivery
- 121.875 118.85 ;WHEN GKY TWR CLSD
Services
- Fuel
- 100LL JET-A JET-A+ 100LL:100LL FULL & SELF SERVE.
- Fuel available
- 100LL JET-A JET-A+ 100LL:100LL FULL & SELF SERVE.
- Parking
- hangars and tiedowns
- Airframe service
- MAJOR
- Powerplant service
- MAJOR
- Bottled oxygen
- LOW
- Bulk oxygen
- NONE
Airport data aggregated from public FAA/AirNav sources for reference only — always consult official charts and NOTAMs for flight planning.
