KJQF Concord-Padgett Regional Airport

Concord, NC · 7 miles W of CONCORD, NC

Public Towered Publicly-owned ICAO KJQF

Location & operations

Elevation: 704.2 ft
Coordinates: 35-23-15.9730N 080-42-32.8770W
Lat / Long: 35.3877703, -80.7091325
Mag. variation: 06W (1995)
Time zone: UTC -4 (UTC -5 during Standard Time)
Activated: 11/1993
ARTCC: ATLANTA CENTER
FSS: RALEIGH FLIGHT SERVICE STATION
NOTAMs facility: JQF (NOTAM-D service available)
Attendance: CONTINUOUS
Wind indicator: lighted
Segmented circle: yes
Beacon: white-green (lighted land airport) Operates sunset to sunrise.
Lights: WHEN ATCT CLSD; TDZL RWY 20; HIRL RWY 02/20 & REIL RWY 02 PRESET LOW INTST. ACTVT MALSR RWY 20; REIL RWY 02; TDZL RWY 20; HIRL RWY 02/20 - CTAF. PAPI RWY 02 & 20 OPER CONSLY.

To (optional)

Longest 7402 ft

Tap a runway to see its details.

Heading: 016 magnetic, 010 true
VGSI / PAPI: 4-light PAPI on left (3.50 degrees glide path)
Instrument approach: ILS/DME
Approach lights: MALSR: 1,400 foot medium intensity approach lighting system with runway alignment indicator lights
Declared distances: TORA:7400 TODA:7400 ASDA:7400 LDA:7400
Markings: basic
Displaced threshold: no
Touchdown point: yes, no lights
REIL: yes
Traffic pattern: left
Threshold elevation: 652.0 ft.
Obstructions: 13 ft. trees, 281 ft. from runway, 248 ft. left of centerline, 6:1 slope to clear

Heading: 196 magnetic, 190 true
VGSI / PAPI: 4-light PAPI on left (3.00 degrees glide path)
Declared distances: TORA:7400 TODA:7400 ASDA:7000 LDA:6350
Markings: precision, in good condition
Displaced threshold: 650 ft.
Touchdown point: yes, lighted
Traffic pattern: left
Threshold elevation: 704.2 ft.
Obstructions: 127 ft. trees, 3200 ft. from runway, 500 ft. right of centerline, 23:1 slope to clear

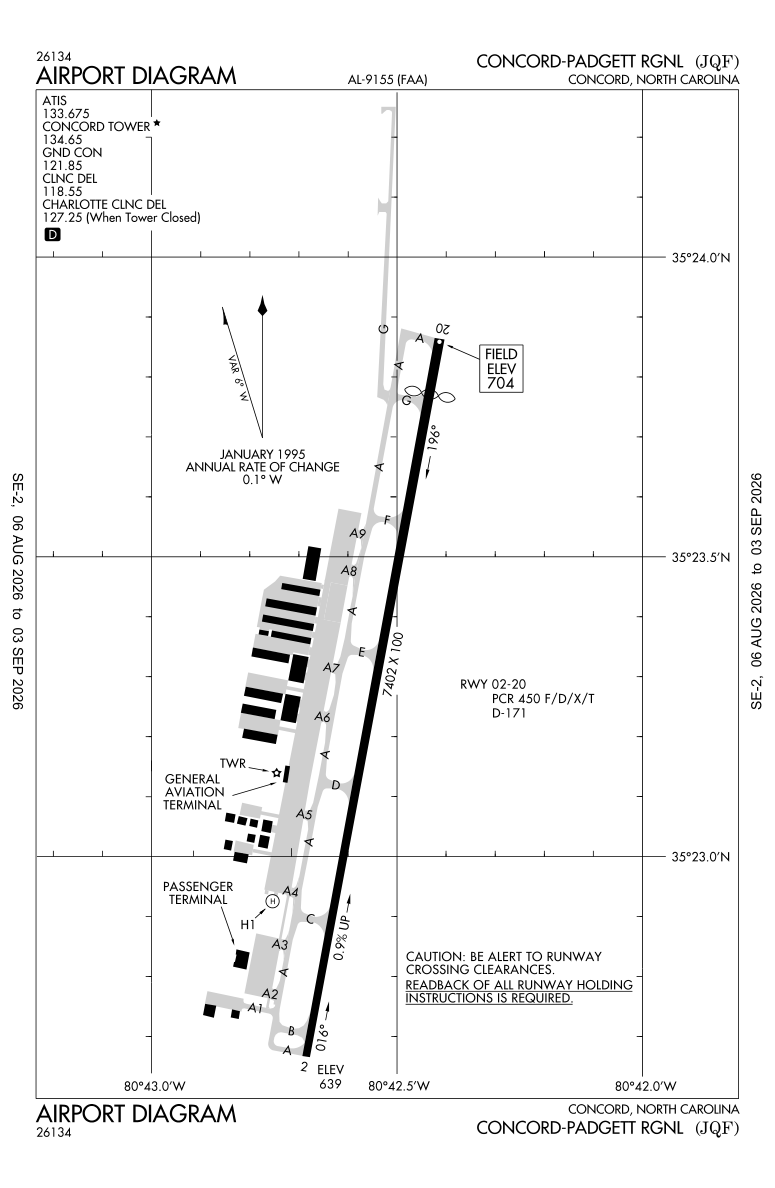

Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.

Airport data aggregated from public FAA/AirNav sources for reference only — always consult official charts and NOTAMs for flight planning.
