KLNA Palm Beach County Park Airport

West Palm Beach, FL · 6 miles S of WEST PALM BEACH, FL

Public Non-towered Publicly-owned ICAO KLNA

Location & operations

Elevation: 14.4 ft
Coordinates: 26-35-34.9660N 080-05-06.2320W
Lat / Long: 26.5930461, -80.0850644
Mag. variation: 07W (2020)
Time zone: UTC -4 (UTC -5 during Standard Time)
Activated: 02/1943
ARTCC: MIAMI CENTER
FSS: MIAMI FLIGHT SERVICE STATION
NOTAMs facility: MIA (NOTAM-D service available)
Attendance: 0800-1830
Pattern altitude: STANDARD PATTERN ENTRY TO ALL RUNWAYS STRONGLY RECOMMENDED.
Wind indicator: lighted
Segmented circle: yes
Beacon: white-green (lighted land airport) Operates sunset to sunrise.
Lights: DUSK-2000. AFTER 2000, ACTVT MIRL RWYS 04/22, 10/28 & 16/34 - CTAF. PAPI RWY 10, 16, 28, & 34 OPR CONSLY.

To (optional)

Longest 3489 ft

Tap a runway to see its details.

Heading: 099 magnetic, 092 true
VGSI / PAPI: 2-light PAPI on left (4.00 degrees glide path)
Markings: basic, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 12.2 ft.
Obstructions: 42 ft. trees, 1045 ft. from runway, 125 ft. right of centerline, 20:1 slope to clear

Heading: 279 magnetic, 272 true
VGSI / PAPI: 2-light PAPI on left (4.00 degrees glide path)
Markings: basic, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 12.7 ft.
Obstructions: 56 ft. trees, 1332 ft. from runway, 175 ft. left of centerline, 20:1 slope to clear

Heading: 159 magnetic, 152 true
VGSI / PAPI: 2-light PAPI on left (3.50 degrees glide path)
Markings: nonprecision, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 13.8 ft.
Obstructions: 17 ft. trees, 600 ft. from runway, 30 ft. right of centerline, 23:1 slope to clear

Heading: 339 magnetic, 332 true
VGSI / PAPI: 2-light PAPI on left (3.50 degrees glide path)
Markings: nonprecision, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 13.0 ft.
Obstructions: 5 ft. brush, 200 ft. from runway, 150 ft. right of centerline, 1:1 slope to clear

Heading: 219 magnetic, 212 true
VGSI / PAPI: 2-light PAPI on left (3.00 degrees glide path)
Markings: basic, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 13.8 ft.
Obstructions: 16 ft. brush, 525 ft. from runway, 70 ft. left of centerline, 21:1 slope to clear

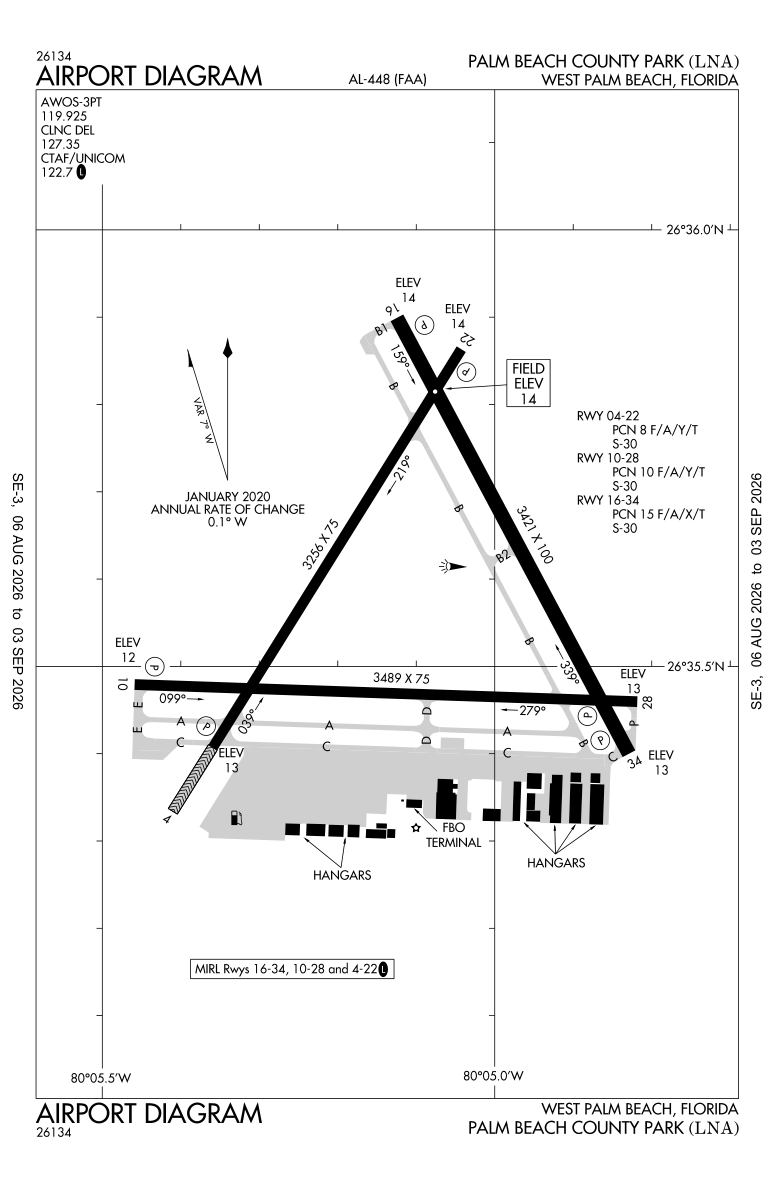

Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.

Airport data aggregated from public FAA/AirNav sources for reference only — always consult official charts and NOTAMs for flight planning.
