KMAF Midland International Air and Space Port Airport

Midland, TX · 8 miles SW of MIDLAND, TX

Public Towered Publicly-owned ICAO KMAF

Location & operations

Elevation: 2872.1 ft
Coordinates: 31-56-33.1000N 102-12-06.9000W
Lat / Long: 31.9425278, -102.2019167
Mag. variation: 09E (1985)
Time zone: UTC -5 (UTC -6 during Standard Time)
Activated: 09/1937
ARTCC: FORT WORTH CENTER
FSS: SAN ANGELO FLIGHT SERVICE STATION
NOTAMs facility: MAF (NOTAM-D service available)
Attendance: CONTINUOUS
Wind indicator: lighted
Segmented circle: yes
Beacon: white-green (lighted land airport) Operates sunset to sunrise.
Lights: ATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.
International operations: US CUSTOMS USER FEE ARPT.

To (optional)

Longest 9,501 ft

Tap a runway to see its details.

Heading: 346 magnetic, 355 true
VGSI / PAPI: 4-light PAPI on left (3.00 degrees glide path)
Declared distances: TORA:9501 TODA:9501 ASDA:9501 LDA:9501
Markings: precision, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 2851.0 ft.
Obstructions: 28 ft. pole, 1550 ft. from runway, 300 ft. left of centerline, 48:1 slope to clear

Dimensions: 8302 x 150 ft. / 2530 x 46 m EAST 692 FT CLSD TO ACFT OVER 60000 LBS.
Surface: asphalt/grooved, in good condition
Edge lights: high intensity Operational restrictions
Weight bearing: Single wheel 160.0

Heading: 105 magnetic, 114 true
VGSI / PAPI: 4-light PAPI on left (3.00 degrees glide path)
Instrument approach: ILS/DME
Approach lights: MALSR: 1,400 foot medium intensity approach lighting system with runway alignment indicator lights
Declared distances: TORA:8302 TODA:8302 ASDA:8177 LDA:8177
Markings: precision, in good condition
Displaced threshold: no
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 2869.3 ft.

Heading: 045 magnetic, 054 true
Declared distances: TORA:4605 TODA:4605 ASDA:4605 LDA:4605
Markings: nonprecision, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 2851.3 ft.
Obstructions: 57 ft. pole, 2688 ft. from runway, 390 ft. right of centerline, 43:1 slope to clear

Heading: 225 magnetic, 234 true
Declared distances: TORA:4605 TODA:4605 ASDA:4605 LDA:4605
Markings: nonprecision, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 2854.9 ft.
Obstructions: 23 ft. road, 1333 ft. from runway, 9 ft. left of centerline, 49:1 slope to clear

Heading: 168 magnetic, 177 true
Declared distances: TORA:4247 TODA:4247 ASDA:4247 LDA:4247
Markings: basic, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 2864.6 ft.
Obstructions: 7 ft. fence, 375 ft. from runway, 100 ft. both sides of centerline, 25:1 slope to clear

Heading: 348 magnetic, 357 true
Declared distances: TORA:4247 TODA:4247 ASDA:4247 LDA:4247
Markings: basic, in good condition
Touchdown point: yes, no lights
Traffic pattern: left
Threshold elevation: 2847.9 ft.
Obstructions: 13 ft. road, 390 ft. from runway, 250 ft. right of centerline, 14:1 slope to clear

None published.

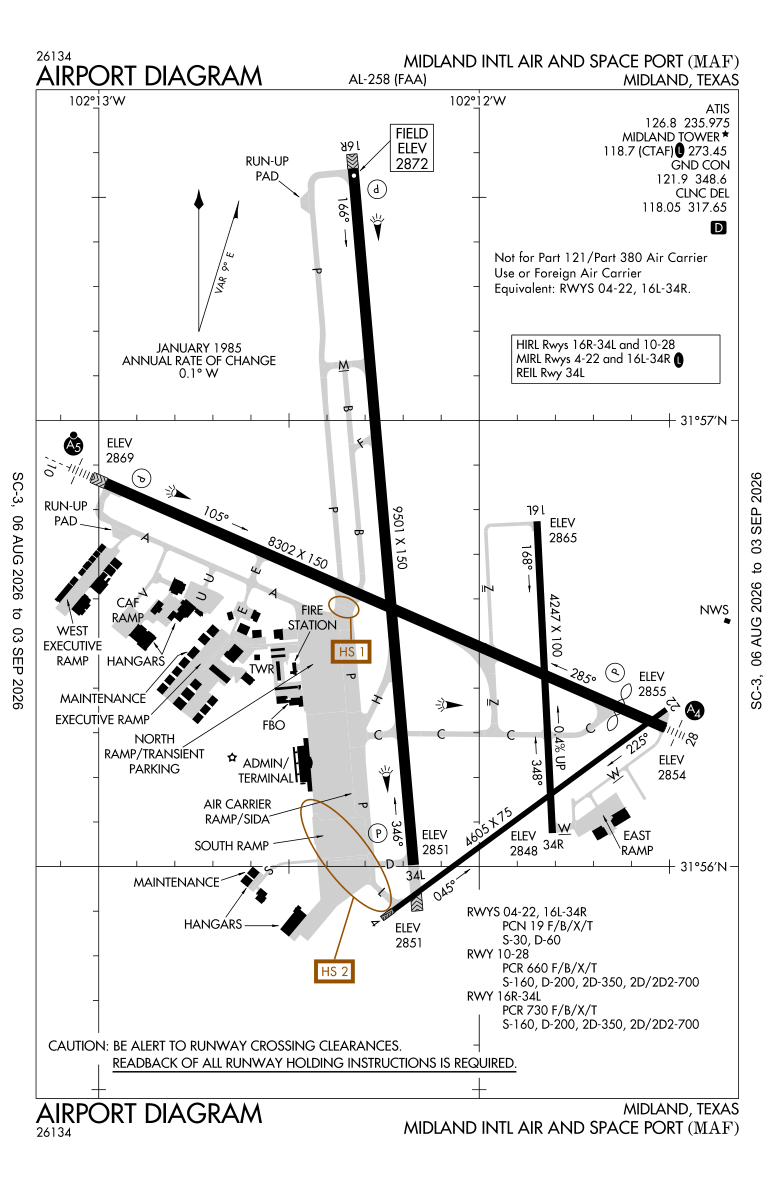

Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.

Control Tower: yes
Ctaf: 118.7
Unicom: 122.95
Atis: 126.8 235.975
Wx Asos: PHONE 432-201-2813
Midland Ground: 121.9 348.6 [0600-0000]
Midland Tower: 118.7 273.45 [0600-0000]
Midland Approach: 121.1 ;137-240 124.6 ;241-136 256.875 ;137-240 290.4 ;241-136 [MIDLAND 0600-0000 SAN ANGELO 0600-2100]
Midland Departure: 121.1 ;137-240 124.6 ;241-136 256.875 ;137-240 290.4 ;241-136 [MIDLAND 0600-0000 SAN ANGELO 0600-2100]
Clearance Delivery: 118.05 317.65
Approach Lights: MALSR: 1,400 foot medium intensity approach lighting system with runway alignment indicator lights
Instrument Approach: ILS/DME

Airport data aggregated from public FAA/AirNav sources for reference only — always consult official charts and NOTAMs for flight planning.
