KNYL Yuma Marine Corps Air Station/Yuma International Airport

Yuma, AZ · 3 miles S of YUMA, AZ

Public Towered U.S. Navy ICAO KNYL
Map ↗ SkyVector ↗ AirNav ↗
ATIS
118.8
273.5
2 freqs · tap ›
Ground
121.9
314.0
[1430-0600Z DLY, CLSD HOL. MIL AVN OPS NOT AUTHORIZED 1430-1500Z DLY DUE TO AFLD MAINT.]
2 freqs · tap ›
Tower
119.3
377.075
[1430-0600Z DLY, CLSD HOL. MIL AVN OPS NOT AUTHORIZED 1430-1500Z DLY DUE TO AFLD MAINT.]
2 freqs · tap ›
Unicom
122.95
CTAF
119.3

Location & operations

Elevation
213.3 ft
Coordinates
32-39-21.3130N 114-36-23.0410W
Lat / Long
32.6559203, -114.6064003
Mag. variation
13E (2000)
Time zone
UTC -7 (year round; does not observe DST)
Activated
04/1940
ARTCC
LOS ANGELES CENTER
FSS
PRESCOTT FLIGHT SERVICE STATION
NOTAMs facility
NYL (NOTAM-D service available)
Attendance
ALL/ALL/ MIL AVN OPS NA 1430-1500Z DLY. VAL/TRANS SVC ABVL MON-FRI 1500-0600Z, CLSD SAT-SUN, HOL.
Pattern altitude
TPA RWY 03L/R RIGHT TRAFFIC 1700 FT; RWY 21L/R LEFT TRAFFIC 1700FT. INITIAL ALT FOR OVERHEAD 4000 FT 6NM. INITIAL ALT FOR STRAIGHT-IN 3000 FT 6NM. COPTER - 700 FT FOR ANY RWY.
Wind indicator
lighted
Segmented circle
no
Beacon
white-green (lighted land airport) Operates sunset to sunrise.
Lights
WHEN ATCT CLSD ACTVT HIRL RWY 08/26, TWYS A, A1, A2, B, C, L, Z - CTAF.
International operations
international airport of entry

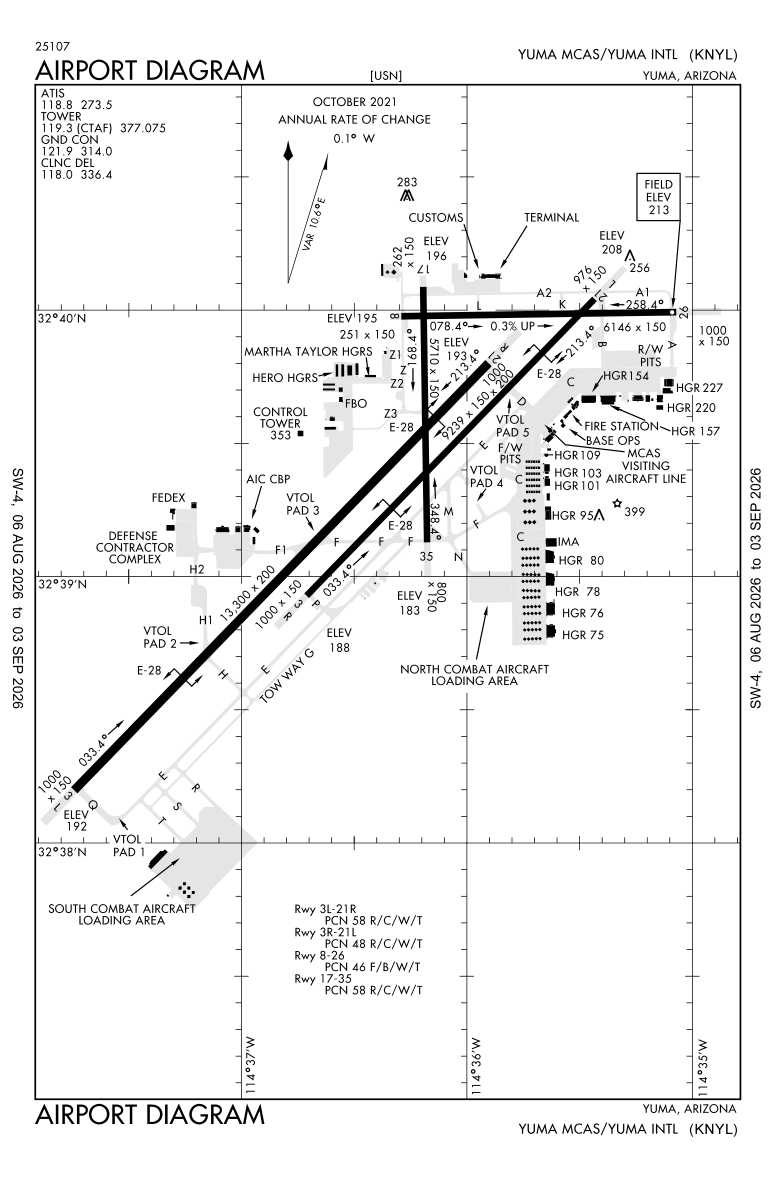

Airport diagram FAA official

KNYL airport diagram

Range from KNYL

Runways

Longest 13,300 ft

Tap a runway to see its details.

Waiting for current wind…

Dimensions
13300 x 200 ft. / 4054 x 61 m
Surface
concrete, in good condition
Edge lights
high intensity
Weight bearing
PCN PCN/58 /R/C/W/T Single wheel

Runway 3L

Heading
031 magnetic, 044 true
VGSI / PAPI
4-light PAPI on left (3.00 degrees glide path)
Instrument approach
ILS
Approach lights
MALSR: 1,400 foot medium intensity approach lighting system with runway alignment indicator lights
Declared distances
TORA:13300 TODA:13300 ASDA:13300 LDA:13300
Markings
precision, in good condition
Touchdown point
yes, no lights
REIL
yes
Traffic pattern
right
Threshold elevation
192.6 ft.

Runway 21R

Heading
211 magnetic, 224 true
VGSI / PAPI
4-light PAPI on left (3.00 degrees glide path)
Declared distances
TORA:13300 TODA:13300 ASDA:13300 LDA:13300
Markings
precision, in good condition
Touchdown point
yes, no lights
Traffic pattern
left
Threshold elevation
192.7 ft.
Dimensions
9240 x 150 ft. / 2816 x 46 m
Surface
asphalt/concrete, in good condition
Edge lights
high intensity
Weight bearing
PCN PCN/48 /R/C/W/T Single wheel

Runway 3R

Heading
031 magnetic, 044 true
VGSI / PAPI
4-light PAPI on left (3.00 degrees glide path)
Declared distances
TORA:9240 TODA:9240 ASDA:9240 LDA:9240
Markings
nonprecision, in good condition
Touchdown point
yes, no lights
REIL
yes
Traffic pattern
right
Threshold elevation
188.0 ft.
Obstructions
29 ft. ant, lighted, 650 ft. from runway, 300 ft. left of centerline, 15:1 slope to clear

Runway 21L

Heading
211 magnetic, 224 true
VGSI / PAPI
4-light PAPI on left (3.00 degrees glide path)
Declared distances
TORA:9240 TODA:9240 ASDA:9240 LDA:9240
Markings
nonprecision, in good condition
Touchdown point
yes, no lights
REIL
yes
Traffic pattern
left
Threshold elevation
207.6 ft.
Obstructions
18 ft. road, 1250 ft. from runway
Dimensions
6146 x 150 ft. / 1873 x 46 m
Surface
asphalt, in good condition
Edge lights
high intensity
Weight bearing
PCN PCN/46 /F/B/W/T Single wheel

Runway 8

Heading
076 magnetic, 089 true
Declared distances
TORA:6146 TODA:6146 ASDA:6146 LDA:6146
Markings
basic, in good condition
Touchdown point
yes, no lights
REIL
no
Traffic pattern
right
Threshold elevation
194.7 ft.
Obstructions
15 ft. road, 490 ft. from runway, 19:1 slope to clear

Runway 26

Heading
256 magnetic, 269 true
Declared distances
TORA:6146 TODA:6146 ASDA:6146 LDA:6146
Markings
basic, in good condition
Touchdown point
yes, no lights
REIL
no
Traffic pattern
left
Threshold elevation
213.3 ft.
Obstructions
18 FT WINDSOCK 130 FT L OF RWY END.

Terminal procedures FAA d-TPP · cycle 2608 · through 0901Z 09/03/26

📄 AIRPORT DIAGRAM (FAA) ↗

Departures — DP / ODP 4

Approaches — IAP 7

Arrivals — STAR 0

None published.

Other charts 1

Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.

Communications

Control Tower
Yes

Services

Fuel
100LLJet-ACallH24.
100LL $6.61 self $8.96 full
Jet A $7.74 self $8.34 full
AirNav, updated nightly
Fuel available
100 JET-A JET-A+ 100:ON CALL H24.
Parking
tiedowns
Airframe service
MINOR
Powerplant service
MINOR
Bottled oxygen
HIGH/LOW
Bulk oxygen
HIGH/LOW

Airport data aggregated from public FAA/AirNav sources for reference only — always consult official charts and NOTAMs for flight planning.
