KOMN Ormond Beach Municipal Airport

Ormond Beach, FL · 3 miles NW of ORMOND BEACH, FL

Public Towered Publicly-owned ICAO KOMN
Map ↗ SkyVector ↗ AirNav ↗
ATIS
118.475
Clearance
121.625
Ground
121.625
[0700-1900]
Tower
119.075
[0700-1900]
Unicom
123.05
Departure
125.8
Approach
125.8
Weather
118.475
(386-615-7084)
CTAF
119.075

Location & operations

Elevation
28.1 ft
Coordinates
29-18-04.1040N 081-06-49.6790W
Lat / Long
29.30114, -81.1137997
Mag. variation
06W (2010)
Time zone
UTC -4 (UTC -5 during Standard Time)
Activated
02/1944
ARTCC
JACKSONVILLE CENTER
FSS
SAINT PETERSBURG FLIGHT SERVICE STATION
NOTAMs facility
OMN (NOTAM-D service available)
Attendance
0700-1900
Wind indicator
lighted
Segmented circle
yes
Beacon
white-green (lighted land airport) Operates sunset to sunrise.
Lights
ACTVT REIL RWY 09, 17, 27, & 35; PAPI RWY 09, 17, 27, & 35; MIRL RWYS 09/27 & 17/35 - CTAF.

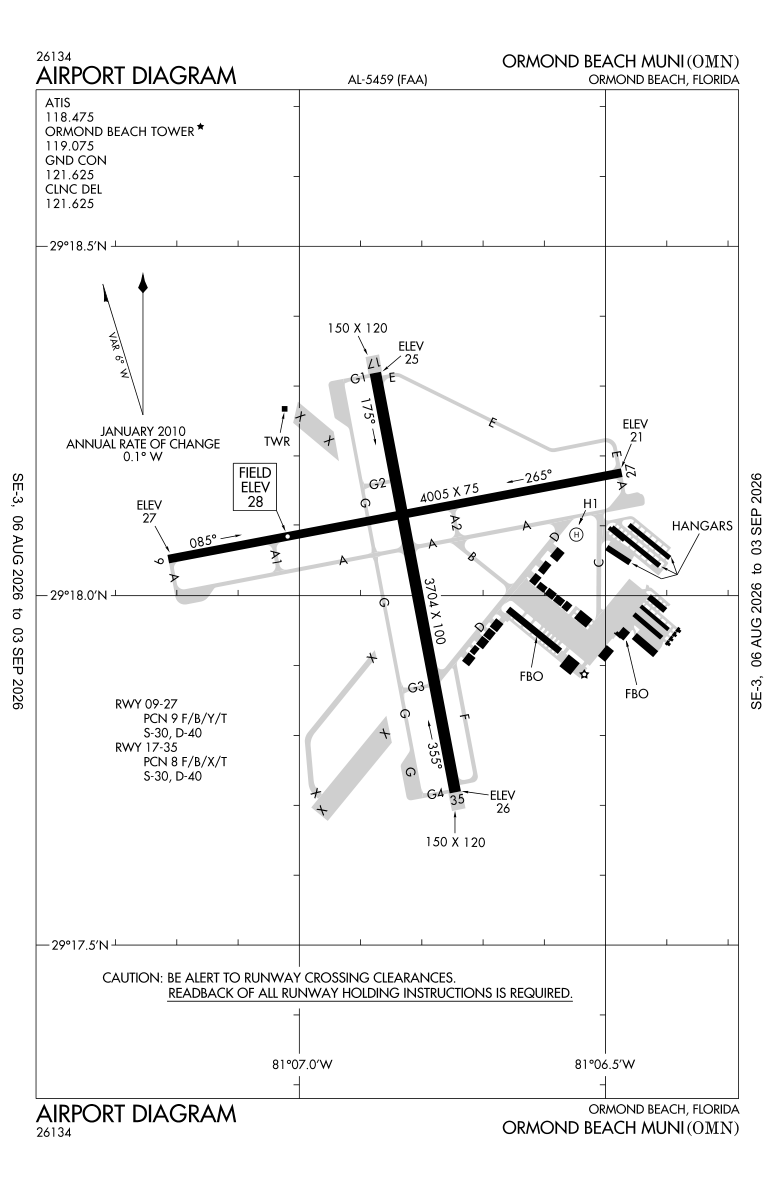

Airport diagram FAA official

KOMN airport diagram

Range from KOMN

Runways

Longest 4,005 ft

Tap a runway to see its details.

Waiting for current wind…

Dimensions
4005 x 75 ft. / 1221 x 23 m
Surface
asphalt/grooved, in good condition
Edge lights
medium intensity
Weight bearing
PCN PCN/9 /F/B/Y/T Single wheel

Runway 9

Heading
085 magnetic, 079 true
VGSI / PAPI
4-light PAPI on left (3.40 degrees glide path)
Markings
nonprecision, in fair condition
Touchdown point
yes, no lights
REIL
yes
Traffic pattern
left
Threshold elevation
27.3 ft.
Obstructions
8 ft. brush, 250 ft. from runway, 250 ft. right of centerline, 6:1 slope to clear

Runway 27

Heading
265 magnetic, 259 true
VGSI / PAPI
4-light PAPI on left (3.40 degrees glide path)
Markings
nonprecision, in fair condition
Touchdown point
yes, no lights
REIL
yes
Traffic pattern
right
Threshold elevation
20.7 ft.
Obstructions
APCH SLP 14:1 TO AER. APCH SLP 20:1 TO AER.
Dimensions
86 x 86 ft. / 26 x 26 m
Surface
concrete, in good condition
Edge lights
PERI
Weight bearing
PCN PCN/8 /F/B/X/T Single wheel

Runway 17

Heading
175 magnetic, 169 true
VGSI / PAPI
4-light PAPI on left (3.50 degrees glide path)
Markings
basic, in fair condition
Touchdown point
yes, no lights
REIL
yes
Traffic pattern
left
Threshold elevation
21.0 ft.
Obstructions
74 ft. trees, 1112 ft. from runway, 15:1 slope to clear

Runway 35

Heading
355 magnetic, 349 true
VGSI / PAPI
4-light PAPI on left (3.00 degrees glide path)
Markings
nonprecision, in poor condition
Touchdown point
yes, no lights
REIL
yes
Traffic pattern
left
Threshold elevation
25.8 ft.
Obstructions
APCH SLP 20:1 TO AER. APCH SLP 21:1 TO AER.

Terminal procedures FAA d-TPP · cycle 2608 · through 0901Z 09/03/26

📄 AIRPORT DIAGRAM (FAA) ↗

Departures — DP / ODP 2

Approaches — IAP 3

Arrivals — STAR 2

Procedure charts published by the FAA (public domain). Confirm the current cycle before flight.

Communications

Control Tower
Yes

Services

Fuel
100LLJet-A
100LL $7.95 full
Jet A $7.90 full
AirNav, updated nightly
Fuel available
100LL JET-A
Parking
tiedowns
Airframe service
MAJOR
Powerplant service
MAJOR
Bottled oxygen
NONE
